Graphic Design with ggplot2

Labels and Annotations

Setup

library(tidyverse)

bikes <- readr::read_csv(
  here::here("slides_ggplot2", "data", "london-bikes-custom.csv"),
  col_types = "Dcfffilllddddc"
)

#bikes$season <- factor(bikes$season, levels = c("spring", "summer", "autumn", "winter"))
bikes$season <- forcats::fct_inorder(bikes$season)

theme_set(theme_light(base_size = 14, base_family = "Roboto Condensed"))

theme_update(
  panel.grid.minor = element_blank(),
  legend.position = "top"
)

Labels + theme()

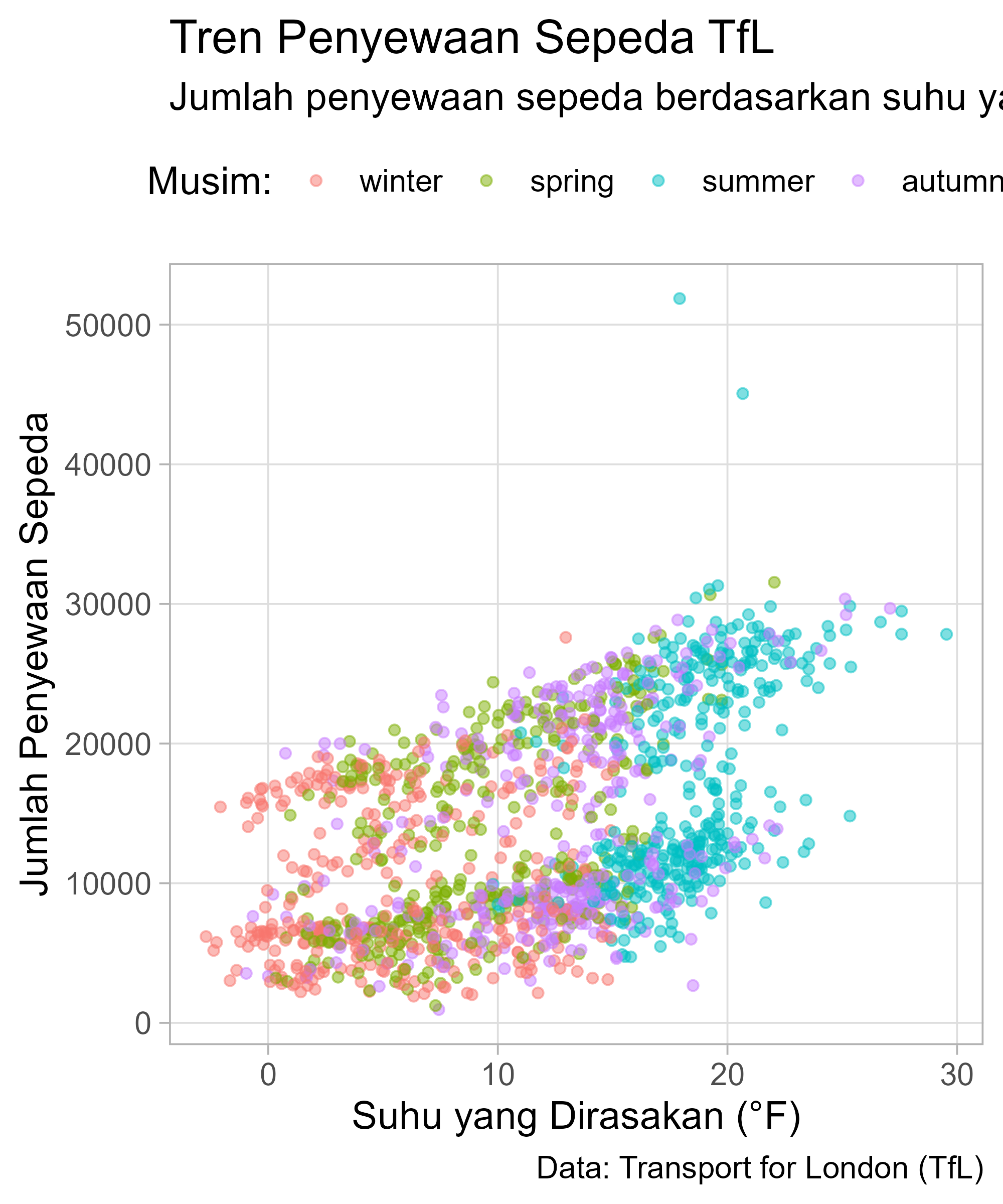

Working with Labels

g <- ggplot(
    bikes,
    aes(x = temp_feel, y = count,
        color = season)
  ) +
  geom_point(
    alpha = .5
  ) +
  labs(
    x = "Suhu yang Dirasakan (°F)",
    y = "Jumlah Penyewaan Sepeda",
    title = "Tren Penyewaan Sepeda TfL",
    subtitle = "Jumlah penyewaan sepeda berdasarkan suhu yang dirasakan di London",
    caption = "Data: Transport for London (TfL)",
    color = "Musim:"
  )

g

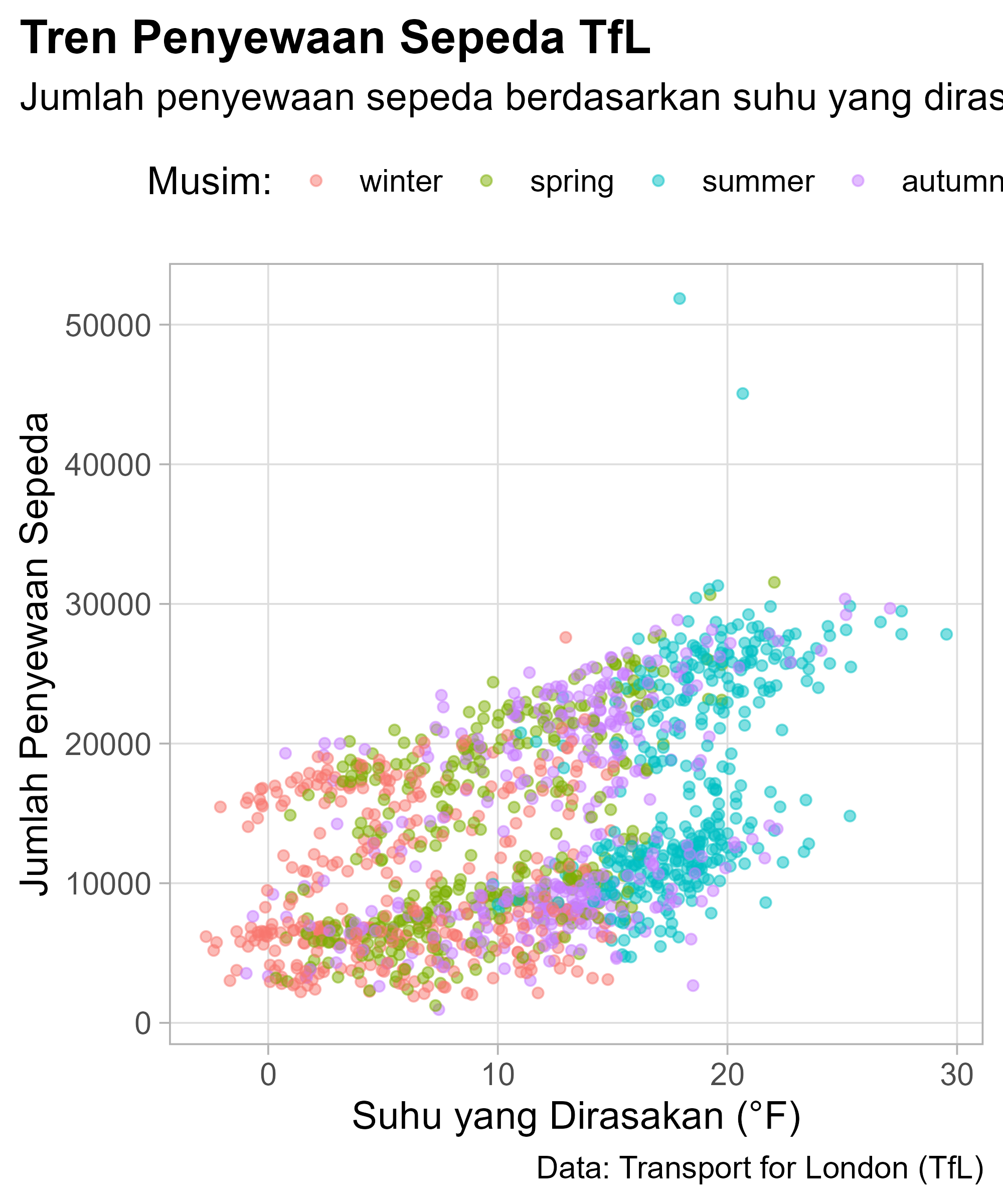

Customize Labels via `theme()`

g + theme(
  plot.title = element_text(face = "bold"),
  plot.title.position = "plot"
)

Customize Labels via `theme()`

g + theme(
  plot.title = element_text(face = "bold"),
  plot.title.position = "plot",
  axis.text = element_text(
    color = "#28a87d"
  )
)

Labels + scale_*()

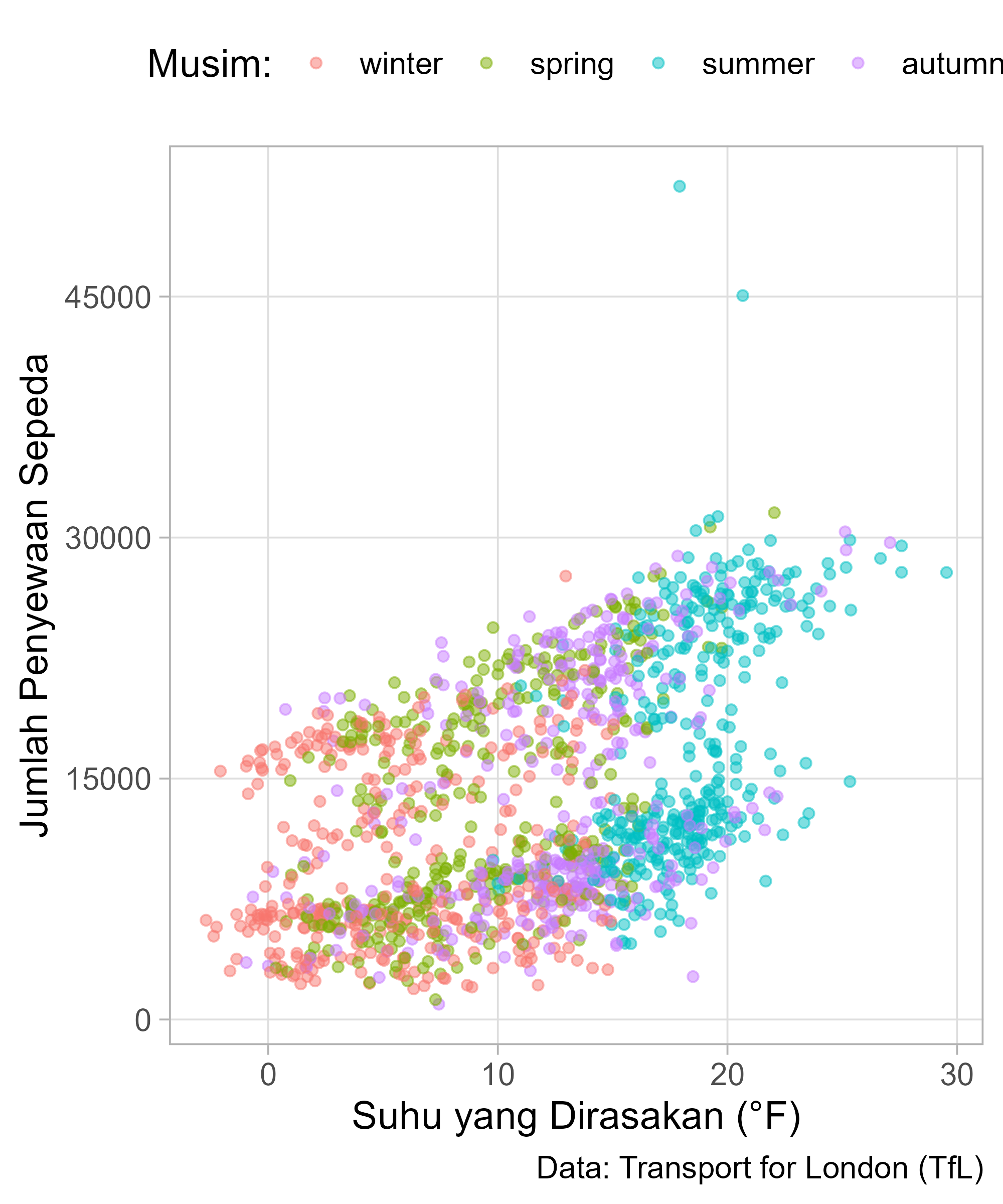

Format Labels via `scale_*`

g <- g + labs(title = NULL,
              subtitle = NULL)

g +
  scale_y_continuous(
    breaks = 0:4*15000
  )

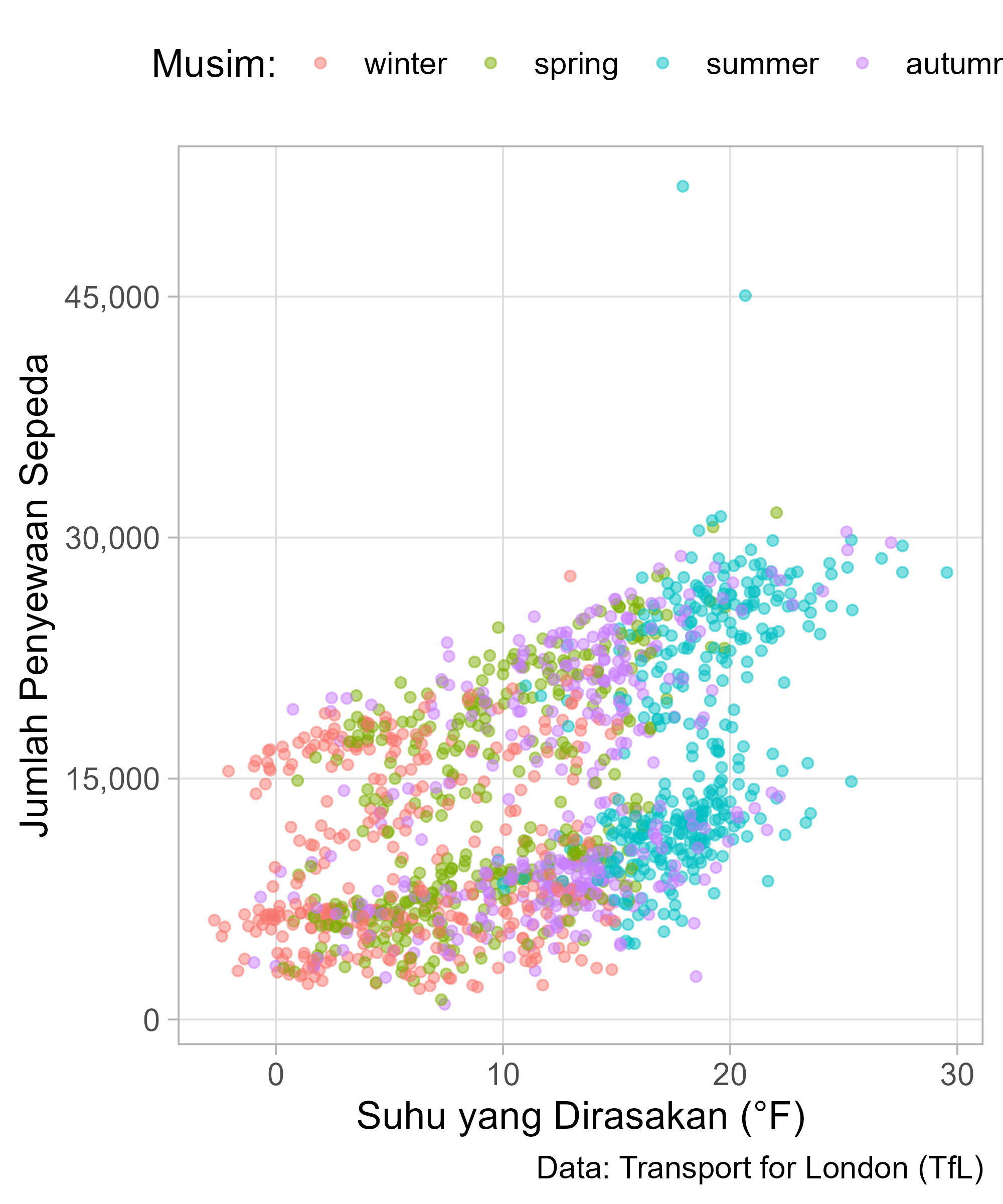

Format Labels via `scale_*`

g +
  scale_y_continuous(
    breaks = 0:4*15000,
    labels = scales::comma_format()
  )

Format Labels via `scale_*`

g +
  scale_y_continuous(
    breaks = 0:4*15000,
    labels = scales::comma_format(
      suffix = " bikes"
    ),
    name = NULL
  )

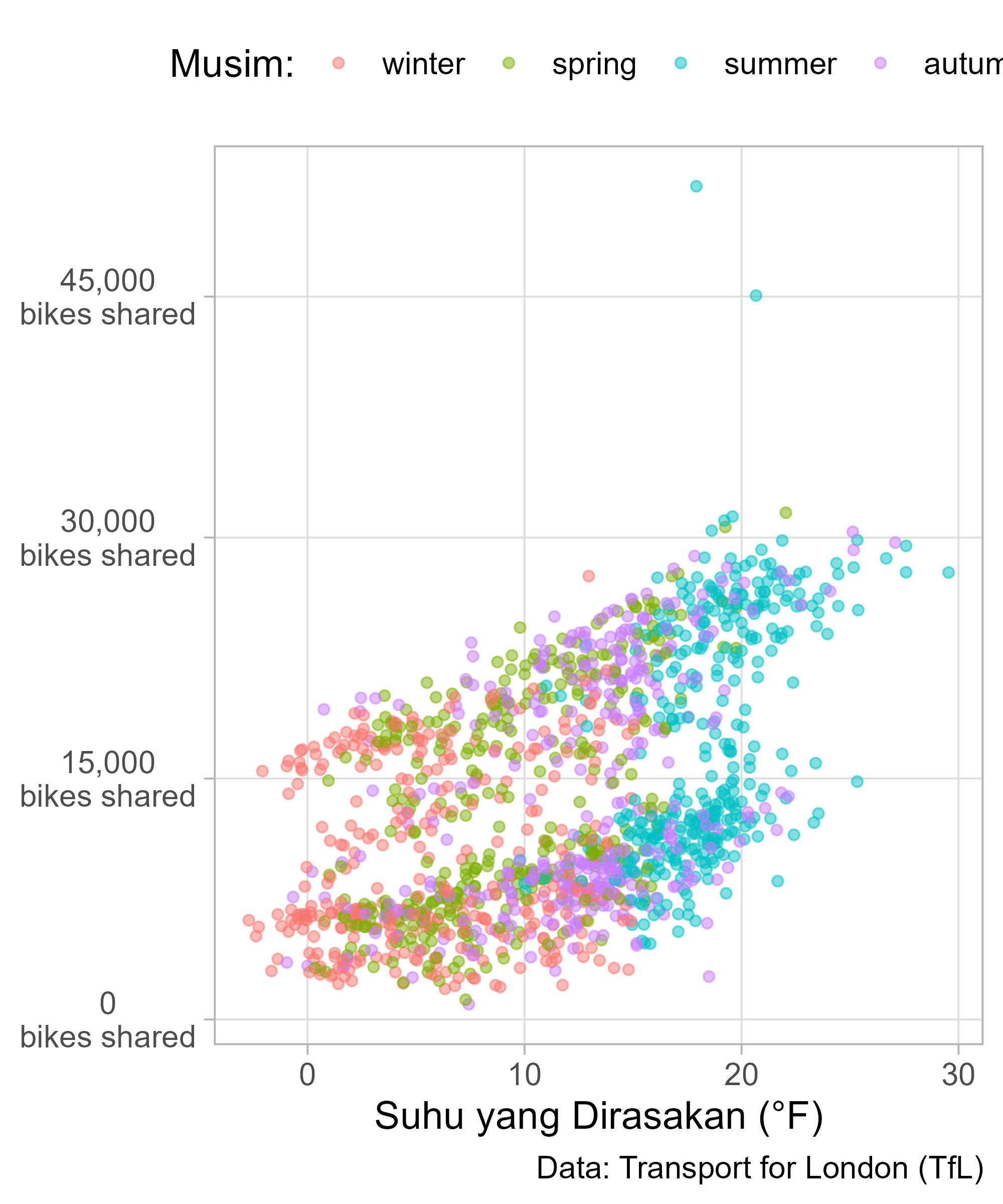

Format Labels via `scale_*`

g +
  scale_y_continuous(
    breaks = 0:4*15000,
    labels = scales::comma_format(
      suffix = "\nbikes shared"
    ),
    name = NULL
  ) +
  theme(
    axis.text.y = element_text(
      hjust = .5
    )
  )

Format Labels via `scale_*`

g +
  scale_y_continuous(
    breaks = 0:4*15000,
    labels = scales::comma_format(
      scale = .001
    ),
    name = "Jumlah Penyewaan Sepeda dalam ribuan"
  )

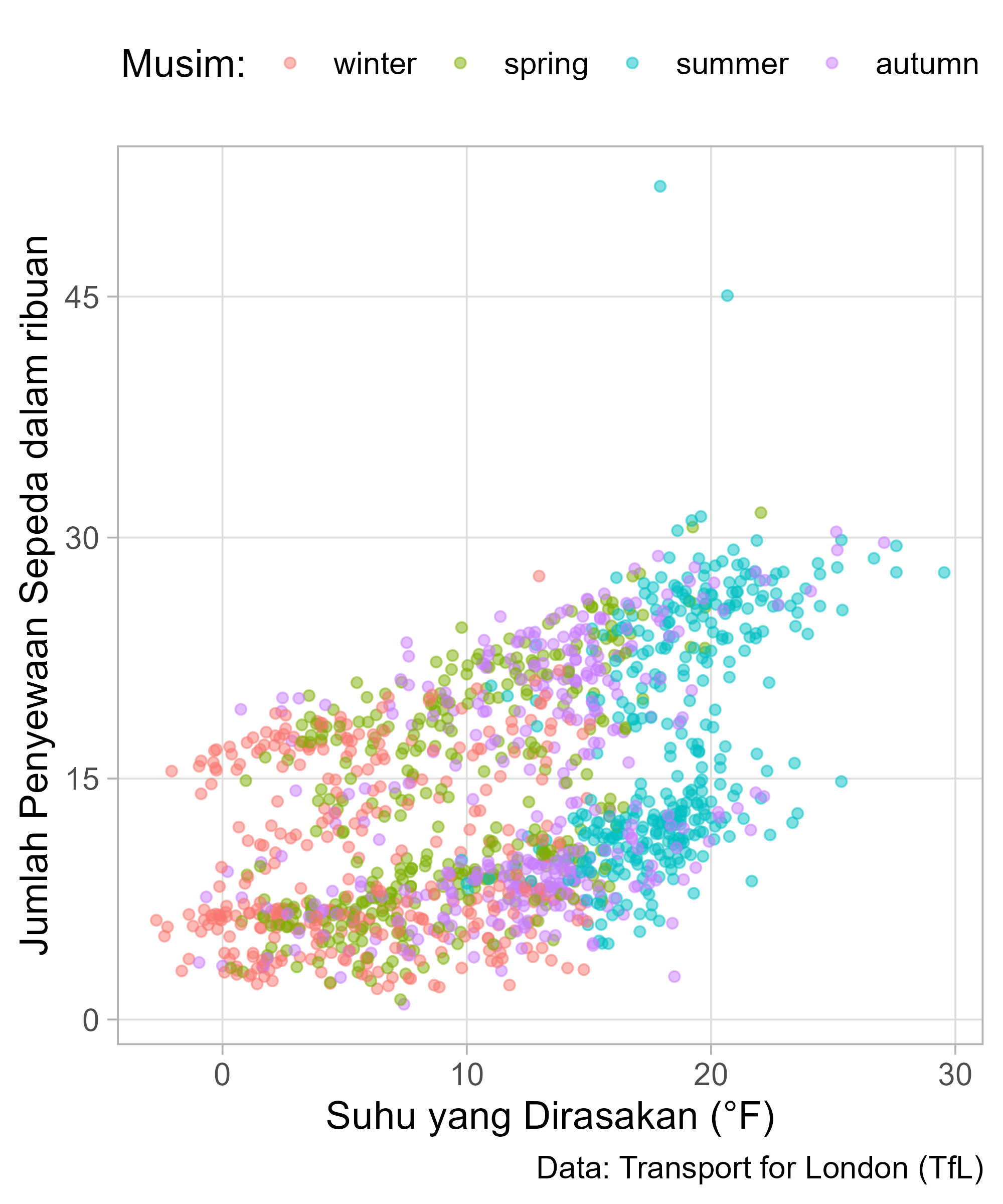

Format Labels via `scale_*`

g +
  scale_y_continuous(
    breaks = 0:4*15000,
    labels = function(y) y / 1000,
    name = "Jumlah Penyewaan Sepeda dalam ribuan",
  )

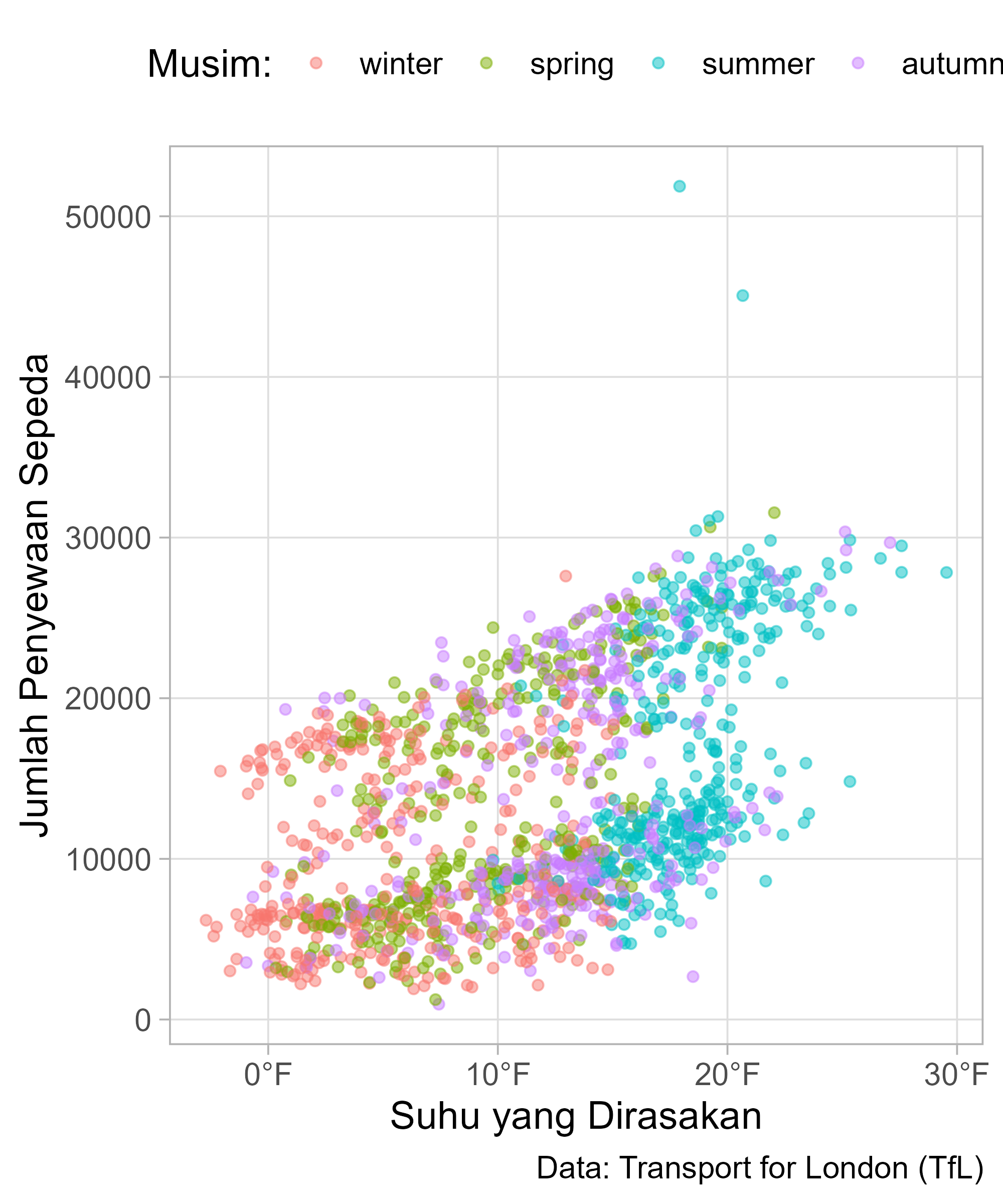

Format Labels via `scale_*`

g +
  scale_x_continuous(
    labels = function(y) paste0(y, "°F"),
    name = "Suhu yang Dirasakan"
  )

Labels +
element_markdown

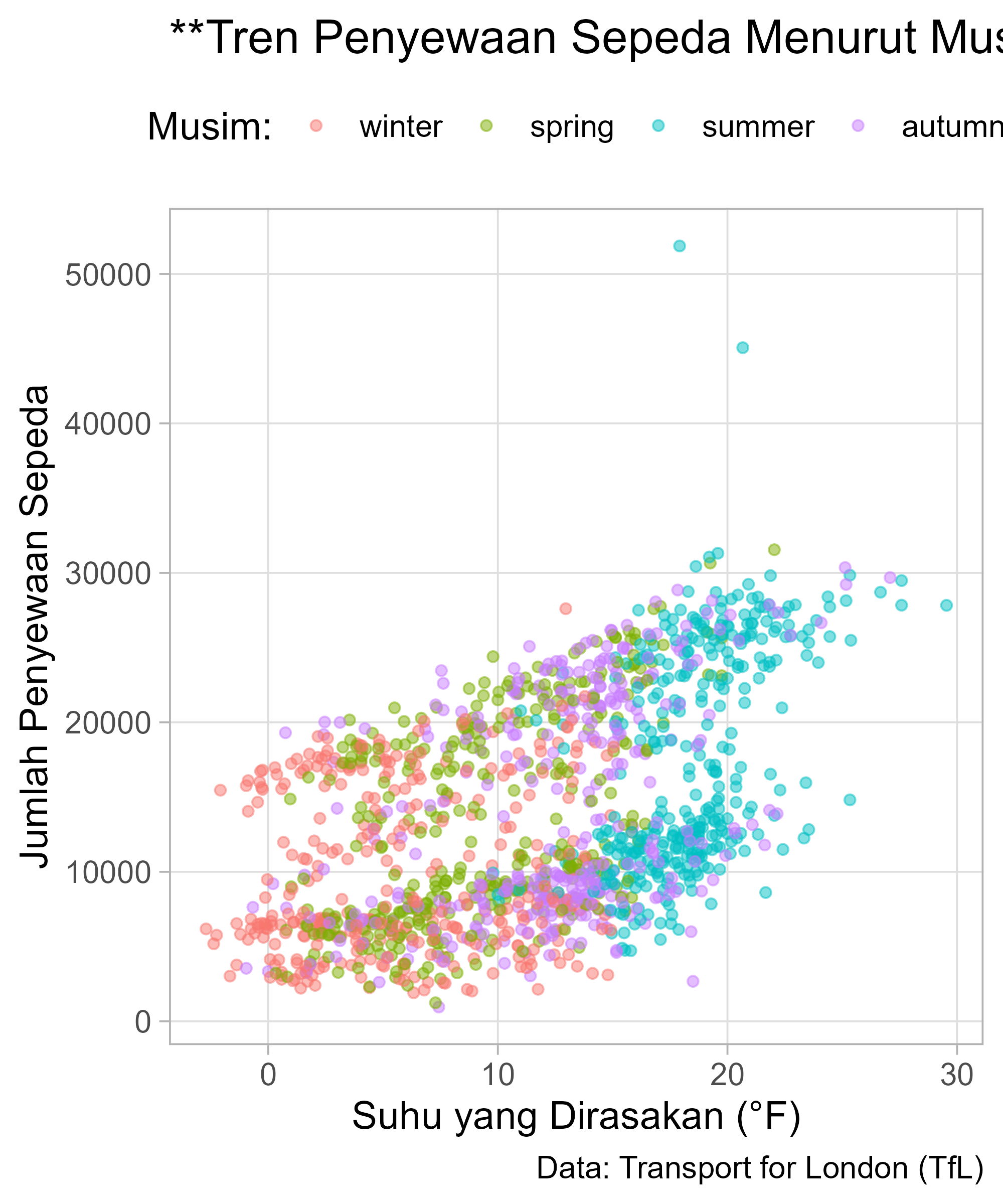

Styling Labels with {ggtext}

# install.packages("ggtext")

g +
  ggtitle("**Tren Penyewaan Sepeda Menurut Musim**")

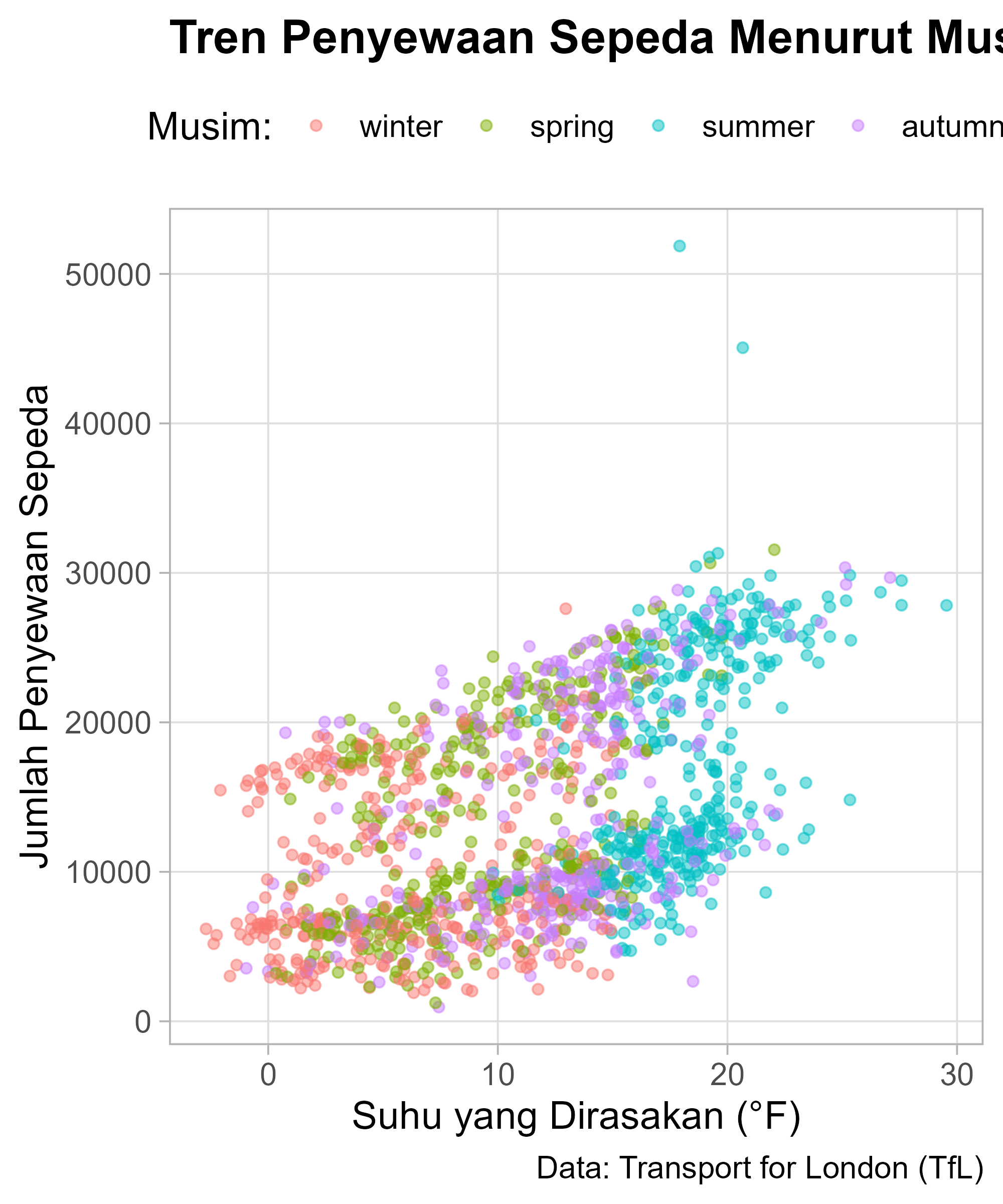

Styling Labels with {ggtext}

# install.packages("ggtext")

g +
  ggtitle("**Tren Penyewaan Sepeda Menurut Musim**") +
  theme(
    plot.title = ggtext::element_markdown()
  )

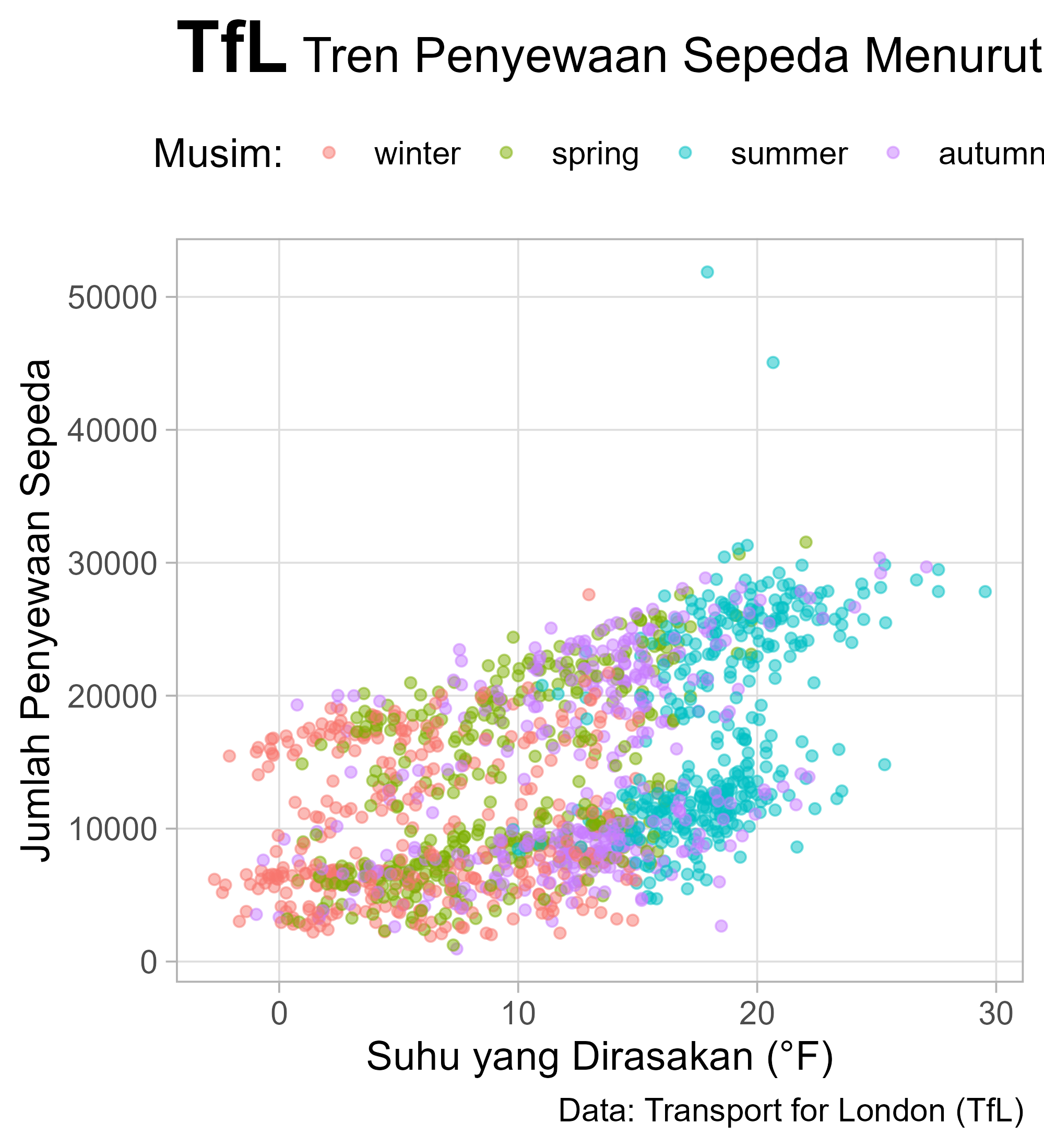

Styling Labels with {ggtext}

# install.packages("ggtext")

g +
  ggtitle("<b style='font-family:tabular;font-size:25pt'>TfL</b> Tren Penyewaan Sepeda Menurut <i style='color:#28a87d;'>Musim</i>") +
  theme(
    plot.title = ggtext::element_markdown()
  )

Labels + facet_*()

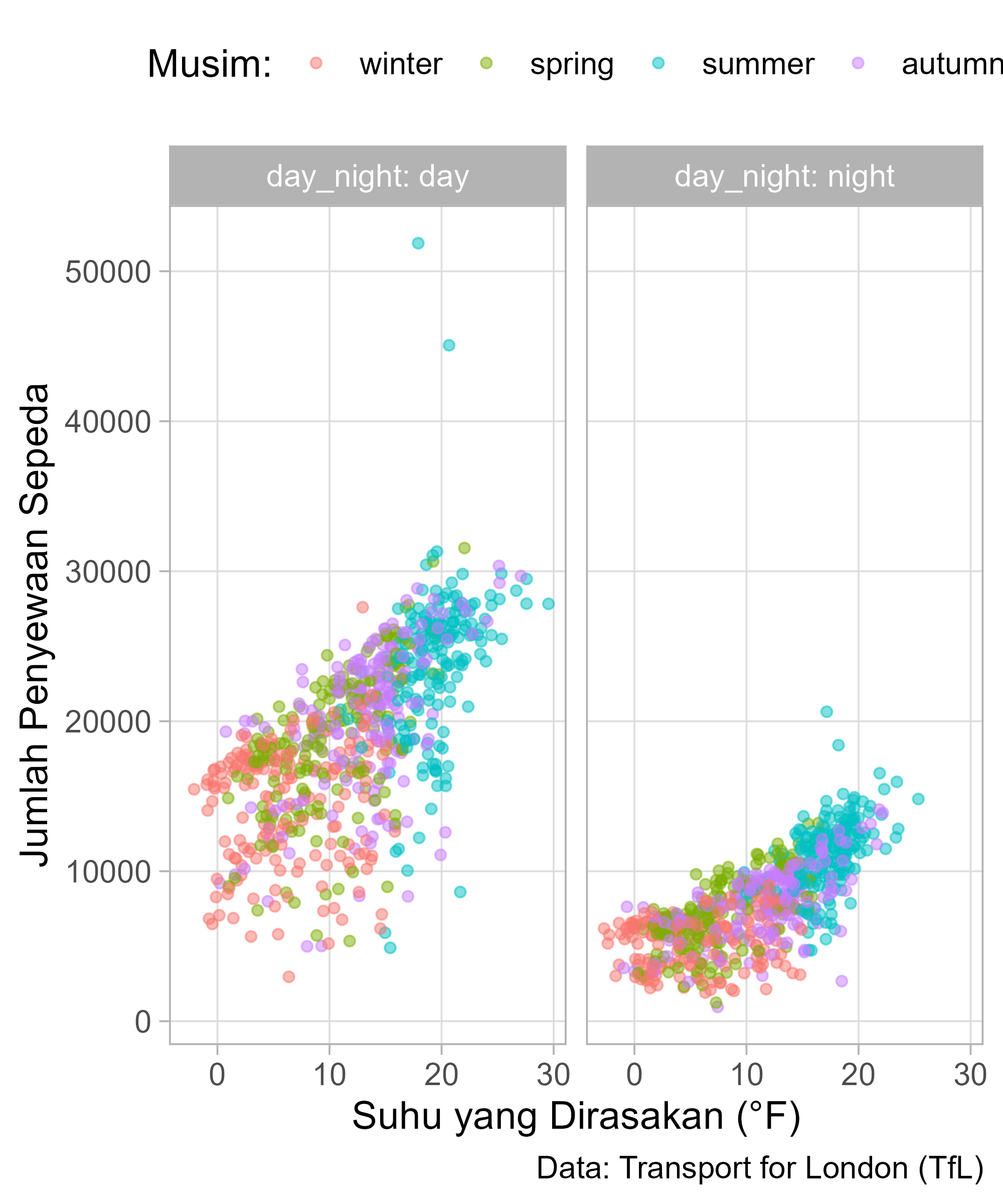

Facet Labellers

g +
  facet_wrap(
    ~ day_night,
    labeller = label_both
  )

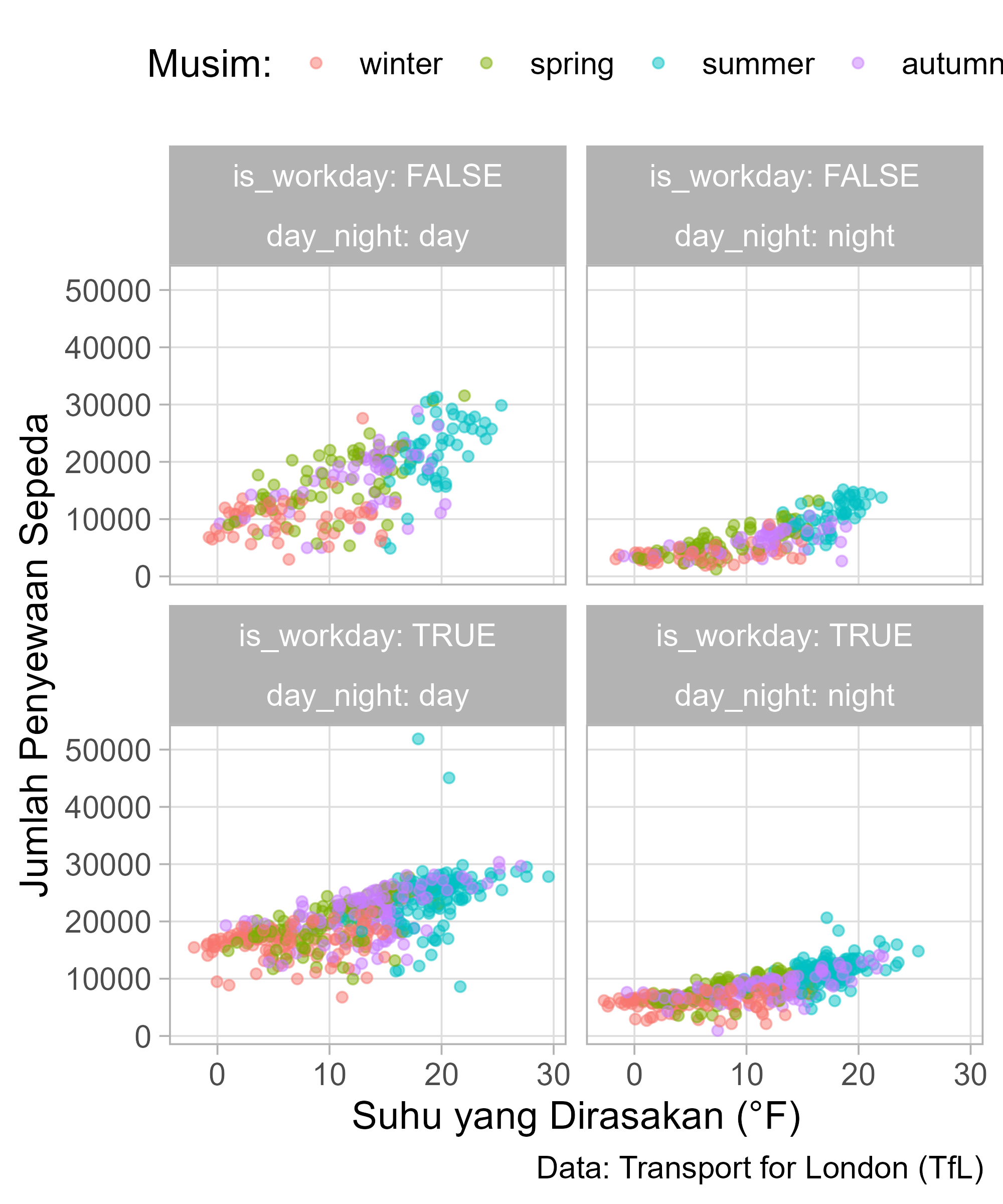

Facet Labellers

g +
  facet_wrap(
    ~ is_workday + day_night,
    labeller = label_both
  )

Facet Labellers

g +
  facet_wrap(
    ~ is_workday + day_night,
    labeller = labeller(
      day_night = stringr::str_to_title
    )
  )

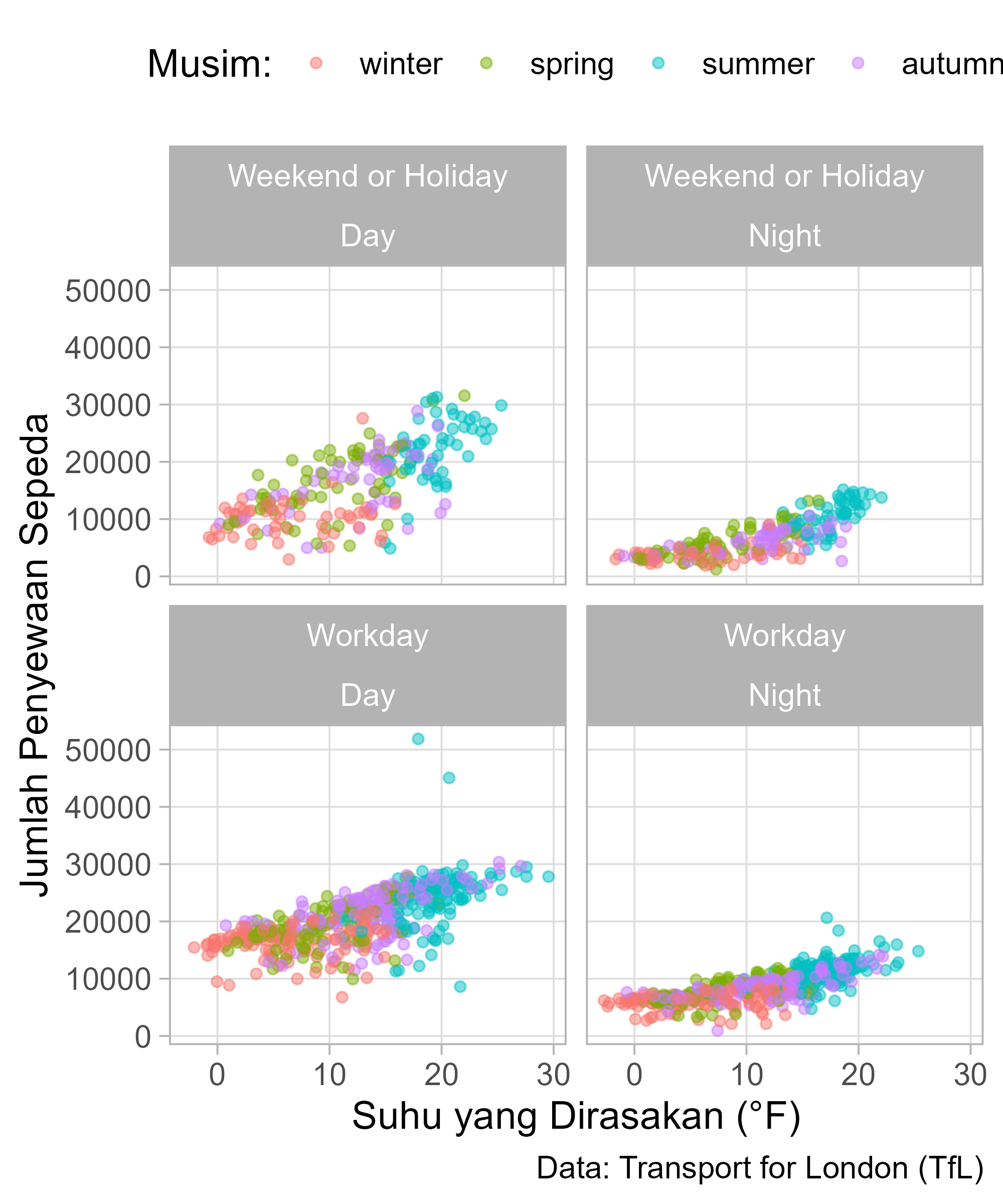

Facet Labellers

codes <- c(
  `TRUE` = "Workday",
  `FALSE` = "Weekend or Holiday"
)

g +
  facet_wrap(
    ~ is_workday + day_night,
    labeller = labeller(
      day_night = stringr::str_to_title,
      is_workday = codes
    )
  )

Facet Labellers

codes <- c(
  `TRUE` = "Workday",
  `FALSE` = "Weekend or Holiday"
)

g +
  facet_wrap(
    ~ is_workday + day_night,
    labeller = labeller(
      .default = stringr::str_to_title,
      is_workday = codes
    )
  )

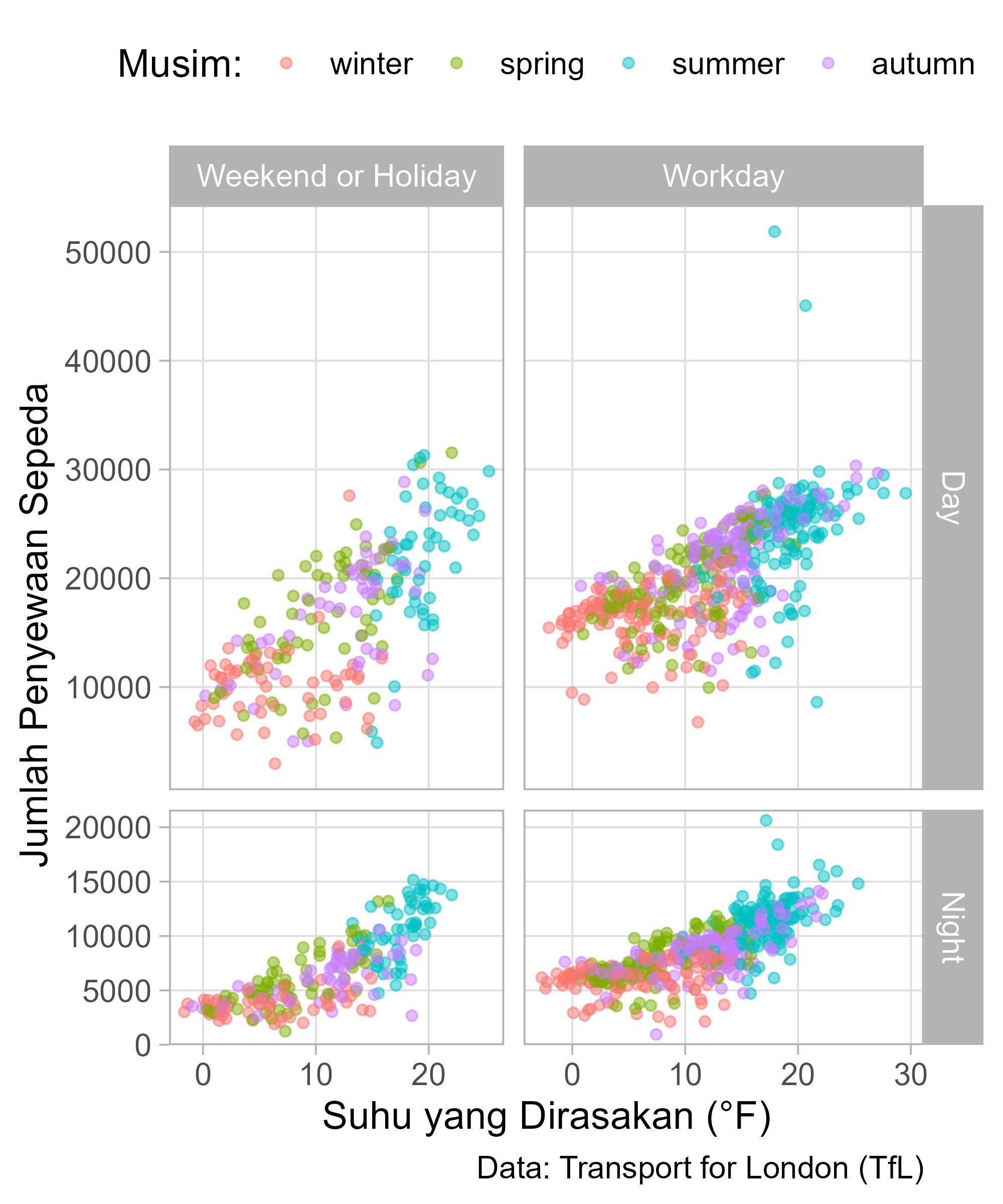

Facet Labeller

g +
  facet_grid(
    day_night ~ is_workday,
    scales = "free",
    space = "free",
    labeller = labeller(
      day_night = stringr::str_to_title,
      is_workday = codes
    )
  )

Handling Long Labels

Handling Long Labels with {ggtext}

g +
  ggtitle("TfL bike sharing trends in 2015 and 2016 by season for day and night periods") +
  theme(
    plot.title = element_text(size = 20),
    plot.title.position = "plot"
  )

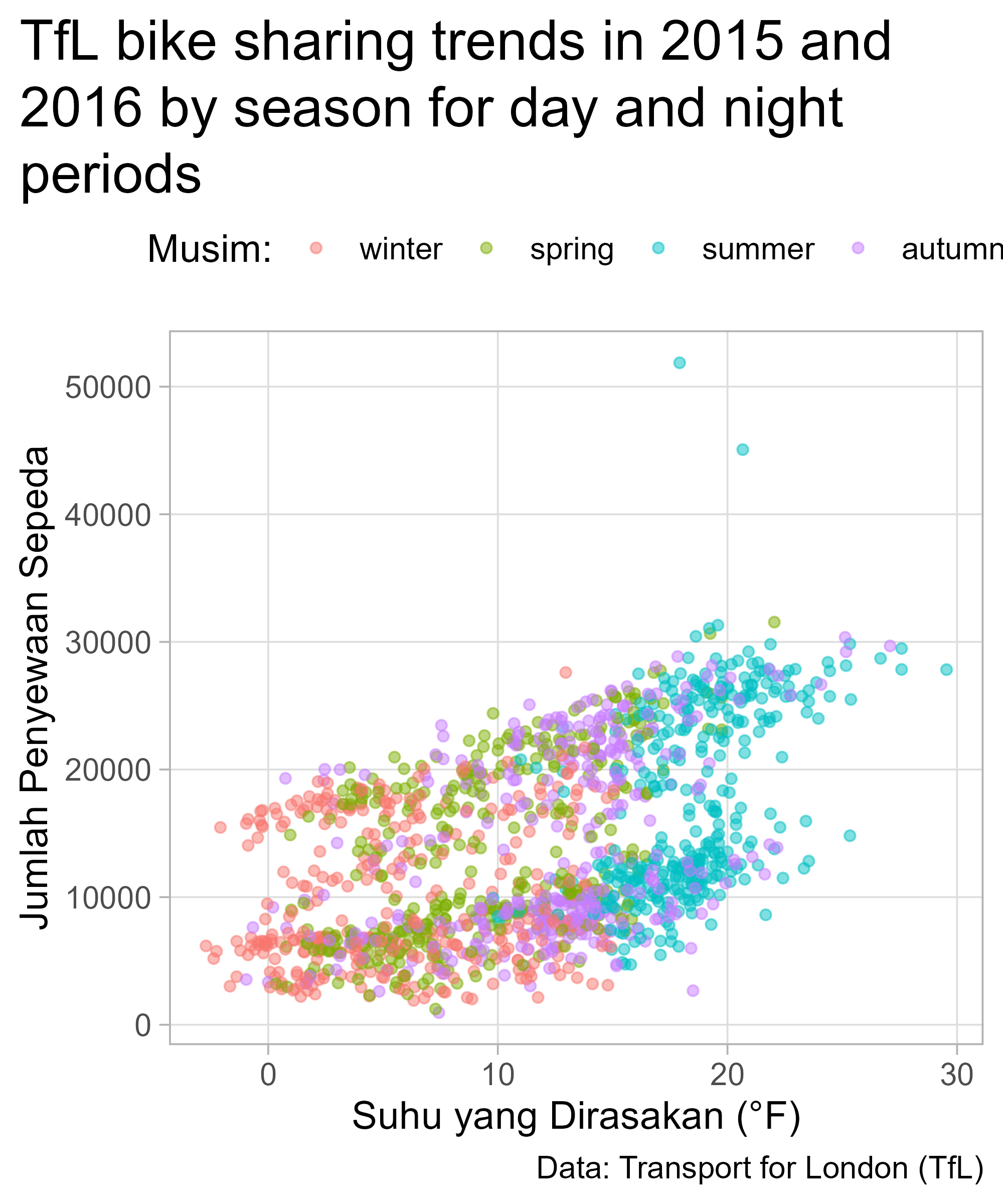

Handling Long Titles

g +
  ggtitle("TfL bike sharing trends in 2015 and 2016 by season for day and night periods") +
  theme(
    plot.title =
      ggtext::element_textbox_simple(size = 20),
    plot.title.position = "plot"
  )

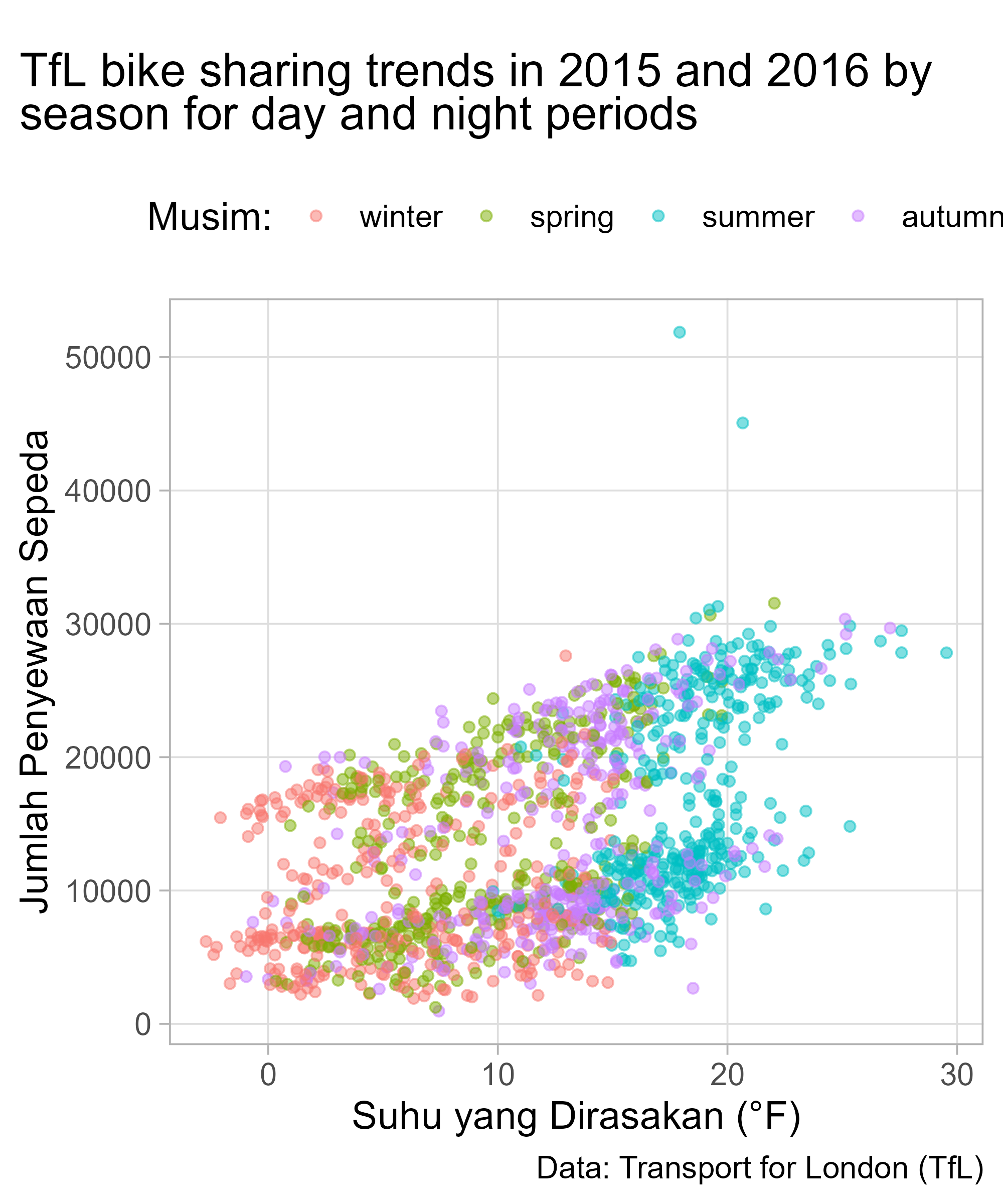

Handling Long Titles

g +
  ggtitle("TfL bike sharing trends in 2015 and 2016 by season for day and night periods") +
  theme(
    plot.title = ggtext::element_textbox_simple(
      margin = margin(t = 12, b = 12),
      lineheight = .9
    ),
    plot.title.position = "plot"
  )

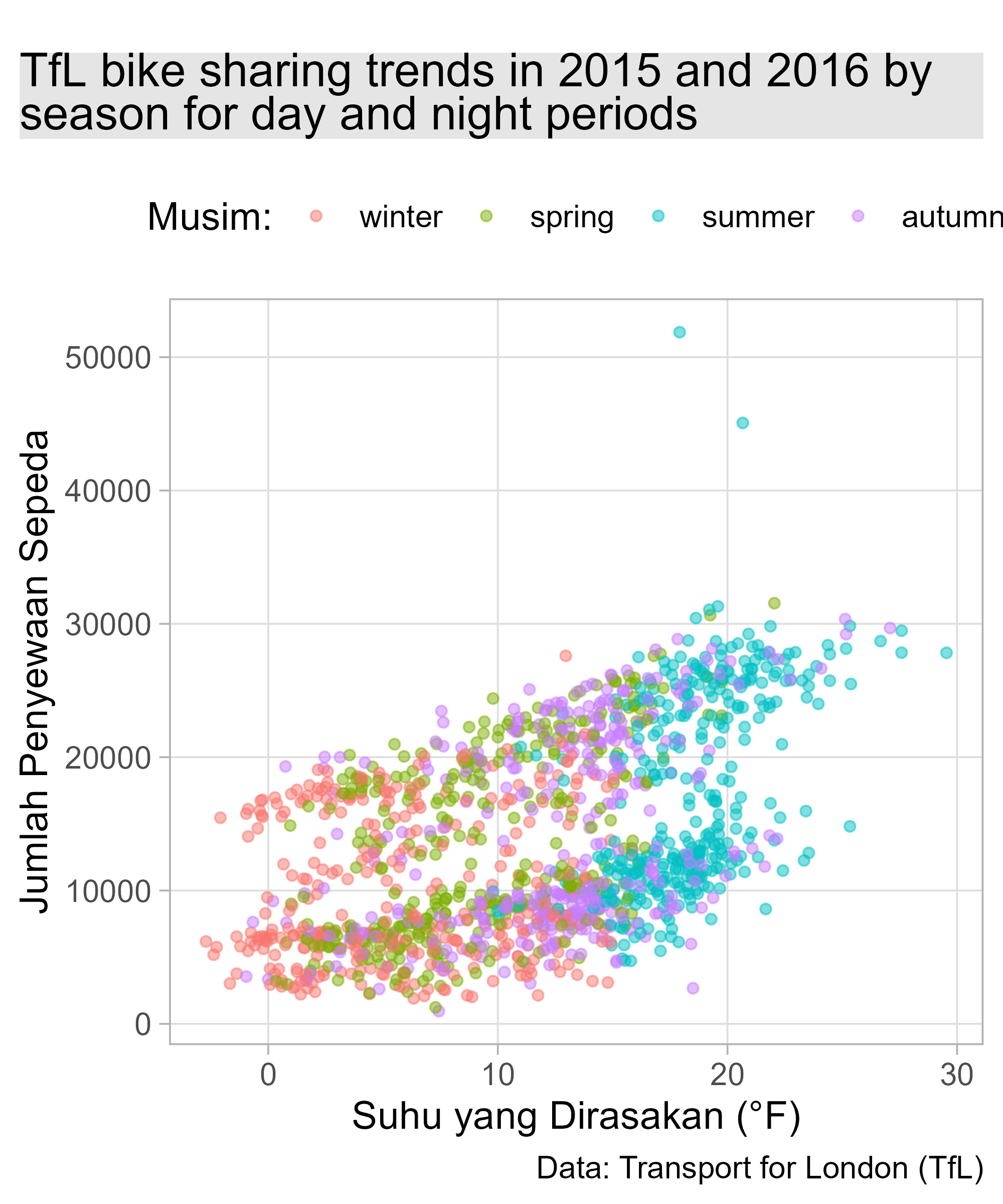

Handling Long Titles

g +
  ggtitle("TfL bike sharing trends in 2015 and 2016 by season for day and night periods") +
  theme(
    plot.title = ggtext::element_textbox_simple(
      margin = margin(t = 12, b = 12),
      fill = "grey90",
      lineheight = .9
    ),
    plot.title.position = "plot"
  )

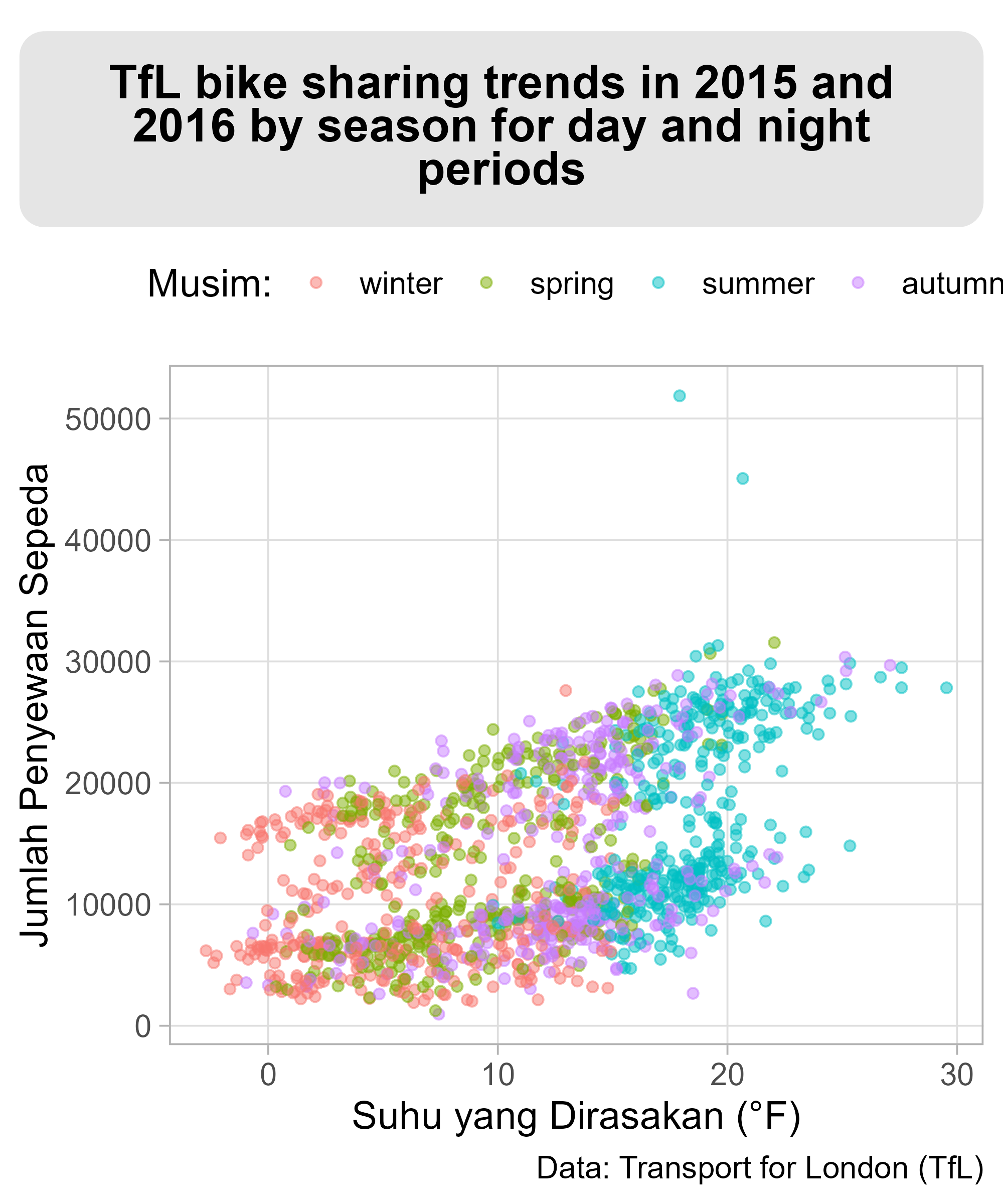

Handling Long Titles

g +
  ggtitle("TfL bike sharing trends in 2015 and 2016 by season for day and night periods") +
  theme(
    plot.title = ggtext::element_textbox_simple(
      margin = margin(t = 12, b = 12),
      padding = margin(rep(12, 4)),
      fill = "grey90",
      box.color = "grey40",
      r = unit(9, "pt"),
      halign = .5,
      face = "bold",
      lineheight = .9
    ),
    plot.title.position = "plot"
  )

Annotations with annotate()

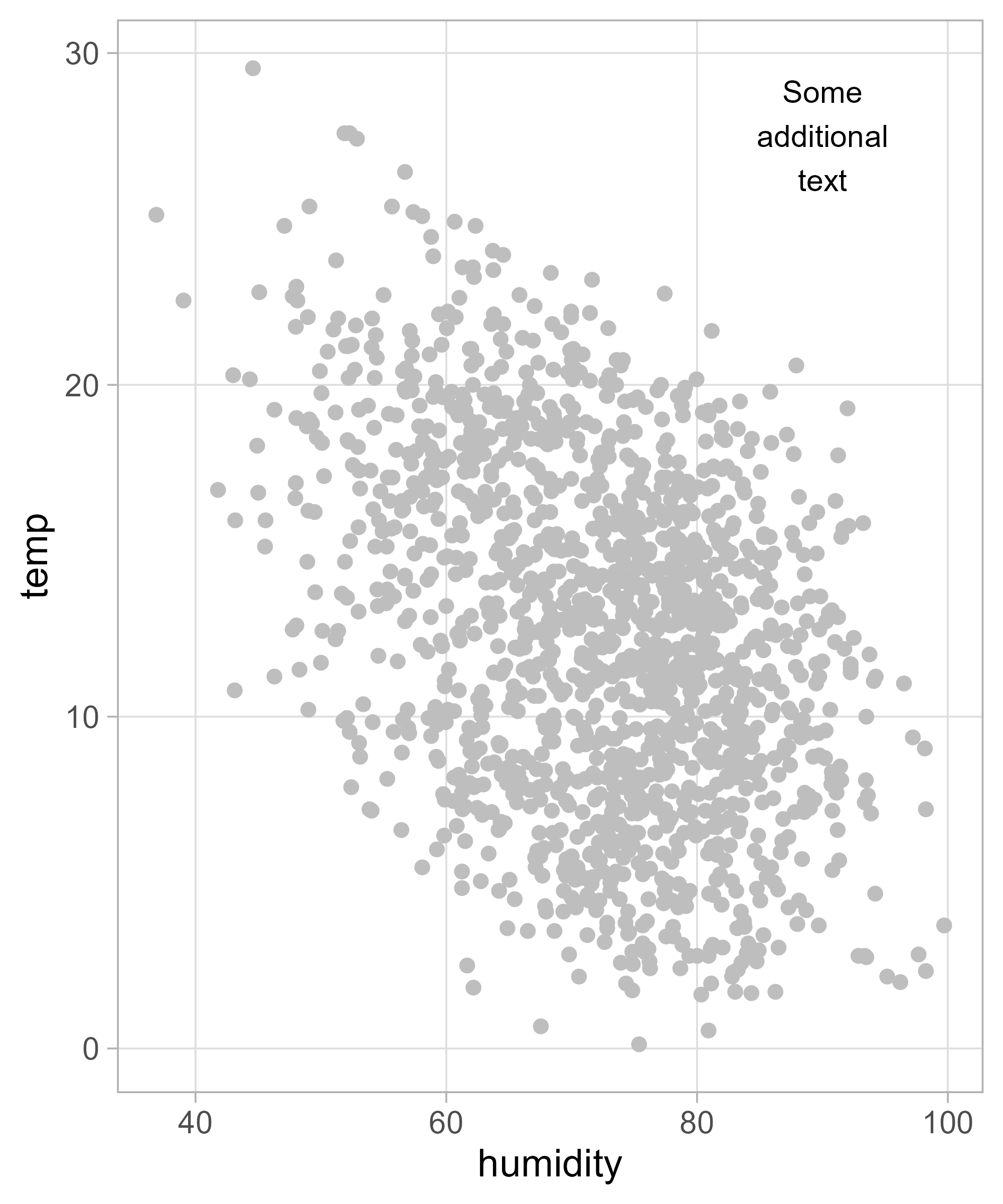

Add Single Text Annotations

ggplot(bikes, aes(humidity, temp)) +
  geom_point(size = 2, color = "grey") +
  annotate(
    geom = "text",
    x = 90,
    y = 27.5,
    label = "Some\nadditional\ntext"
  )

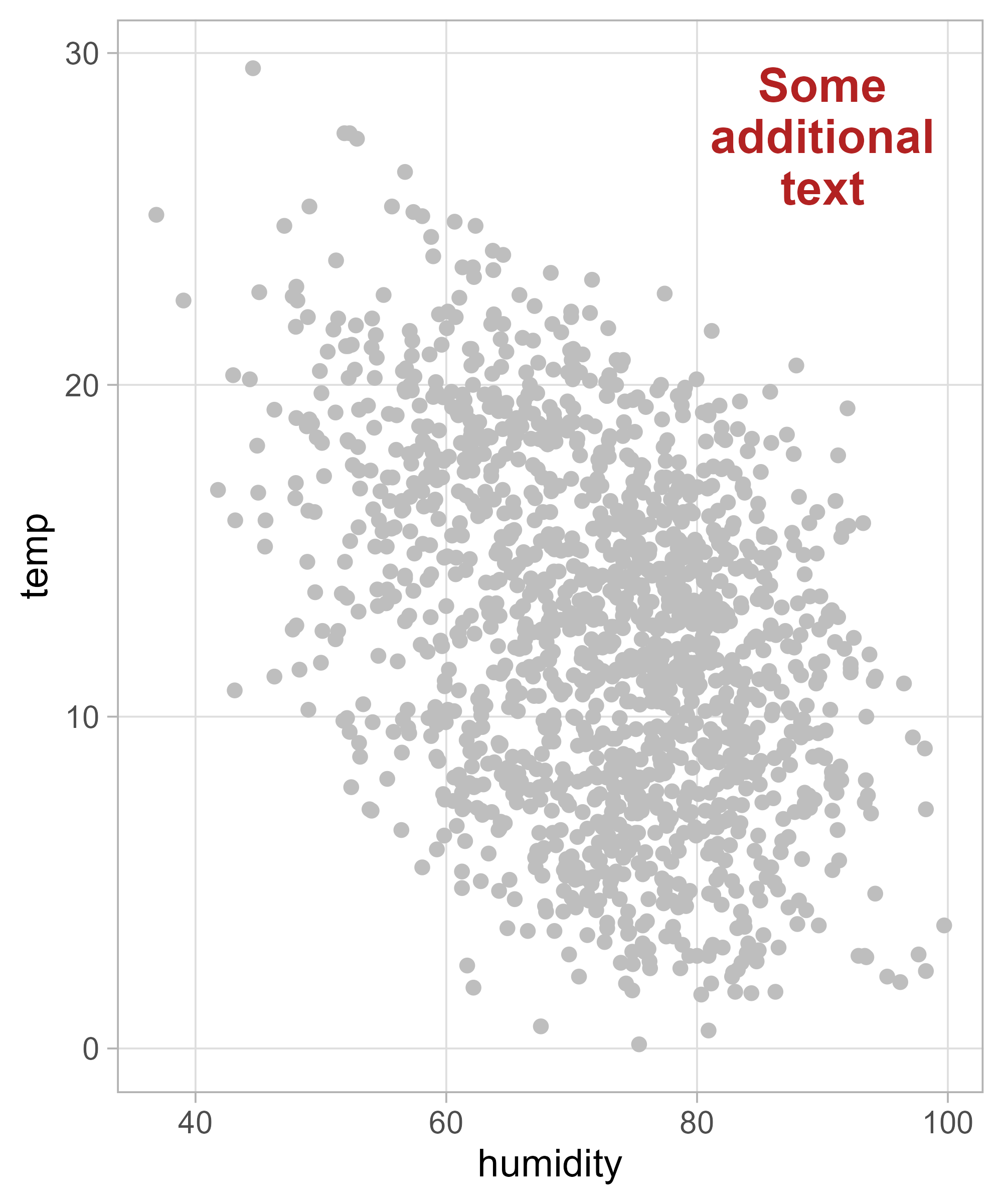

Style Text Annotations

ggplot(bikes, aes(humidity, temp)) +
  geom_point(size = 2, color = "grey") +
  annotate(
    geom = "text",
    x = 90,
    y = 27.5,
    label = "Some\nadditional\ntext",
    size = 6,
    color = "firebrick",
    fontface = "bold",
    lineheight = .9
  )

Add Multiple Text Annotations

ggplot(bikes, aes(humidity, temp)) +
  geom_point(size = 2, color = "grey") +
  annotate(
    geom = "text",
    x = c(90, 50),
    y = c(27.5, 3.5),
    label = c("Text A", "Text B"),
    color = c("black", "firebrick"),
    size = c(5, 10),
    fontface = c("plain", "bold")
  )

Add Boxes (Rectangles)

ggplot(bikes, aes(humidity, temp)) +
  geom_point(size = 2, color = "grey") +
  annotate(
    geom = "rect",
    xmin = -Inf,
    xmax = 60,
    ymin = 20,
    ymax = Inf,
    fill = "#663399"
  )

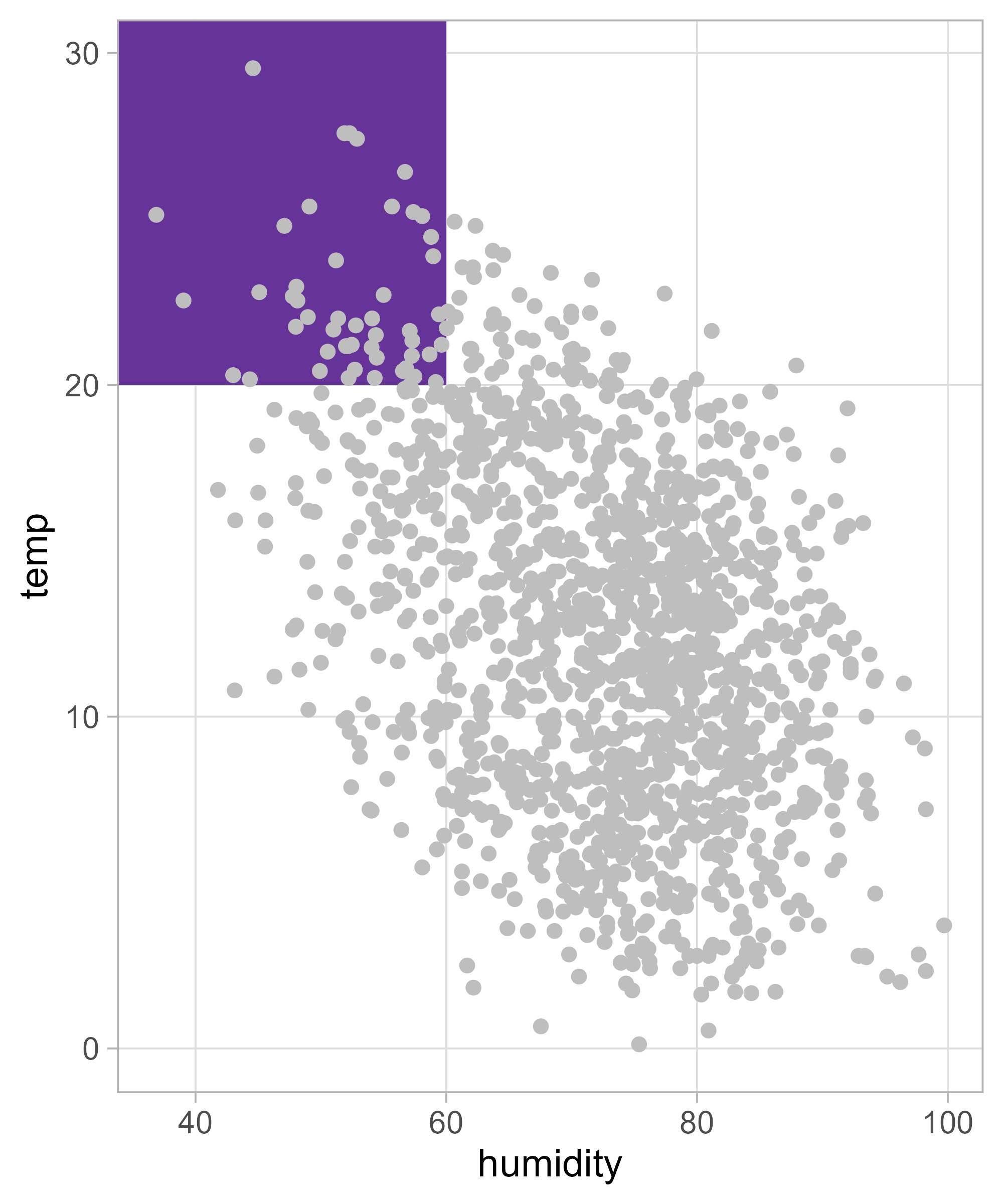

Add Boxes (Rectangles)

ggplot(bikes, aes(humidity, temp)) +
  annotate(
    geom = "rect",
    xmin = -Inf,
    xmax = 60,
    ymin = 20,
    ymax = Inf,
    fill = "#663399"
  ) +
  geom_point(size = 2, color = "grey")

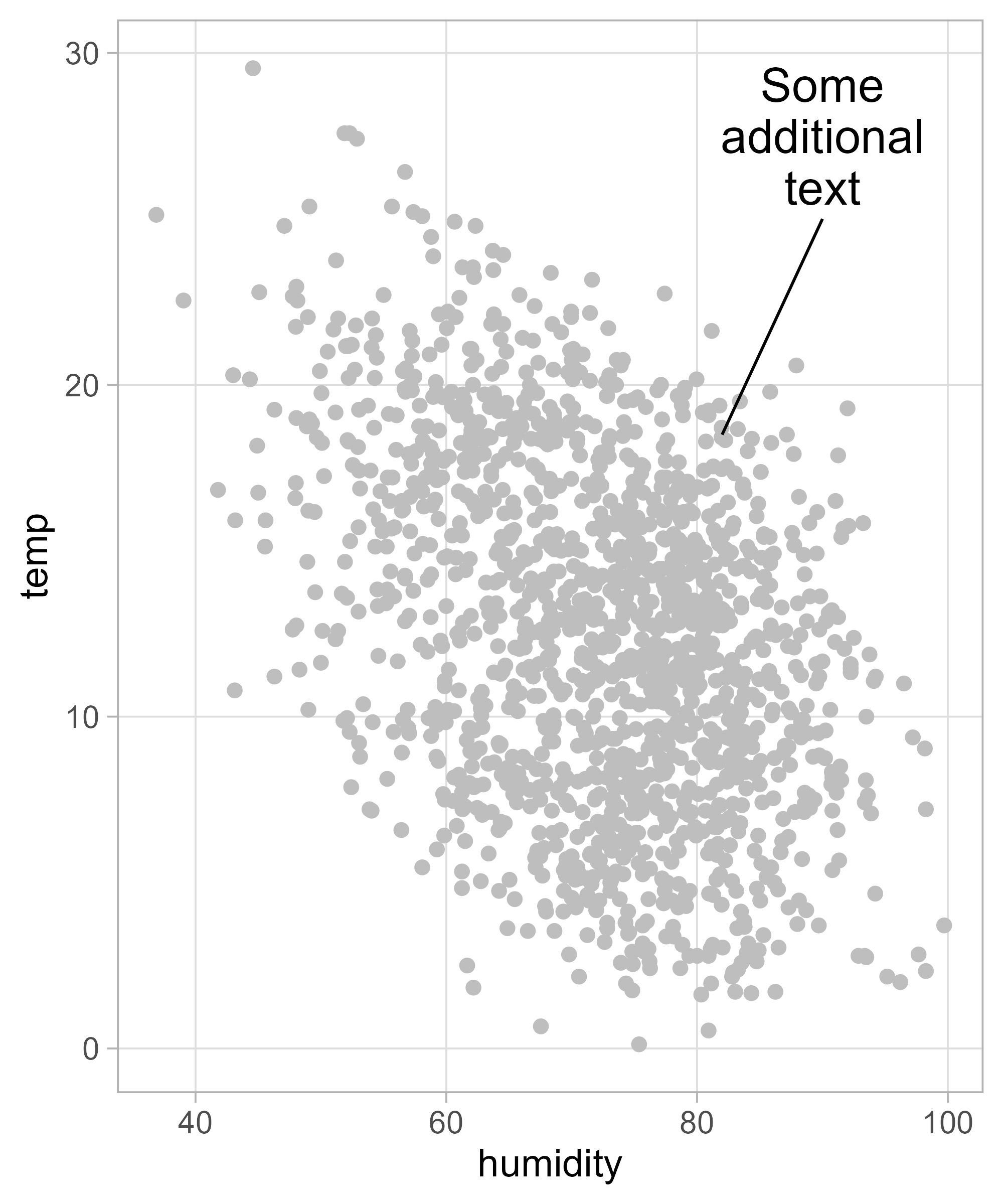

Add Lines (Segments)

ggplot(bikes, aes(humidity, temp)) +
  geom_point(size = 2, color = "grey") +
  annotate(
    geom = "text",
    x = 90,
    y = 27.5,
    label = "Some\nadditional\ntext",
    size = 6,
    lineheight = .9
  ) +
  annotate(
    geom = "segment",
    x = 90, xend = 82,
    y = 25, yend = 18.5
  )

Add Curves

ggplot(bikes, aes(humidity, temp)) +
  geom_point(size = 2, color = "grey") +
  annotate(
    geom = "text",
    x = 90,
    y = 27.5,
    label = "Some\nadditional\ntext",
    size = 6,
    lineheight = .9
  ) +
  annotate(
    geom = "curve",
    x = 90, xend = 82,
    y = 25, yend = 18.5
  )

Add Arrows

ggplot(bikes, aes(humidity, temp)) +
  geom_point(size = 2, color = "grey") +
  annotate(
    geom = "text",
    x = 90,
    y = 27.5,
    label = "Some\nadditional\ntext",
    size = 6,
    lineheight = .9
  ) +
  annotate(
    geom = "curve",
    x = 90, xend = 82,
    y = 25, yend = 18.5,
    curvature = -.3,
    arrow = arrow()
  )

Add Arrows

ggplot(bikes, aes(humidity, temp)) +
  geom_point(size = 2, color = "grey") +
  annotate(
    geom = "text",
    x = 90,
    y = 27.5,
    label = "Some\nadditional\ntext",
    size = 6,
    lineheight = .9
  ) +
  annotate(
    geom = "curve",
    x = 90, xend = 82,
    y = 25, yend = 18.5,
    curvature = -.3,
    arrow = arrow(
      length = unit(10, "pt"),
      type = "closed",
      ends = "both"
    )
  )

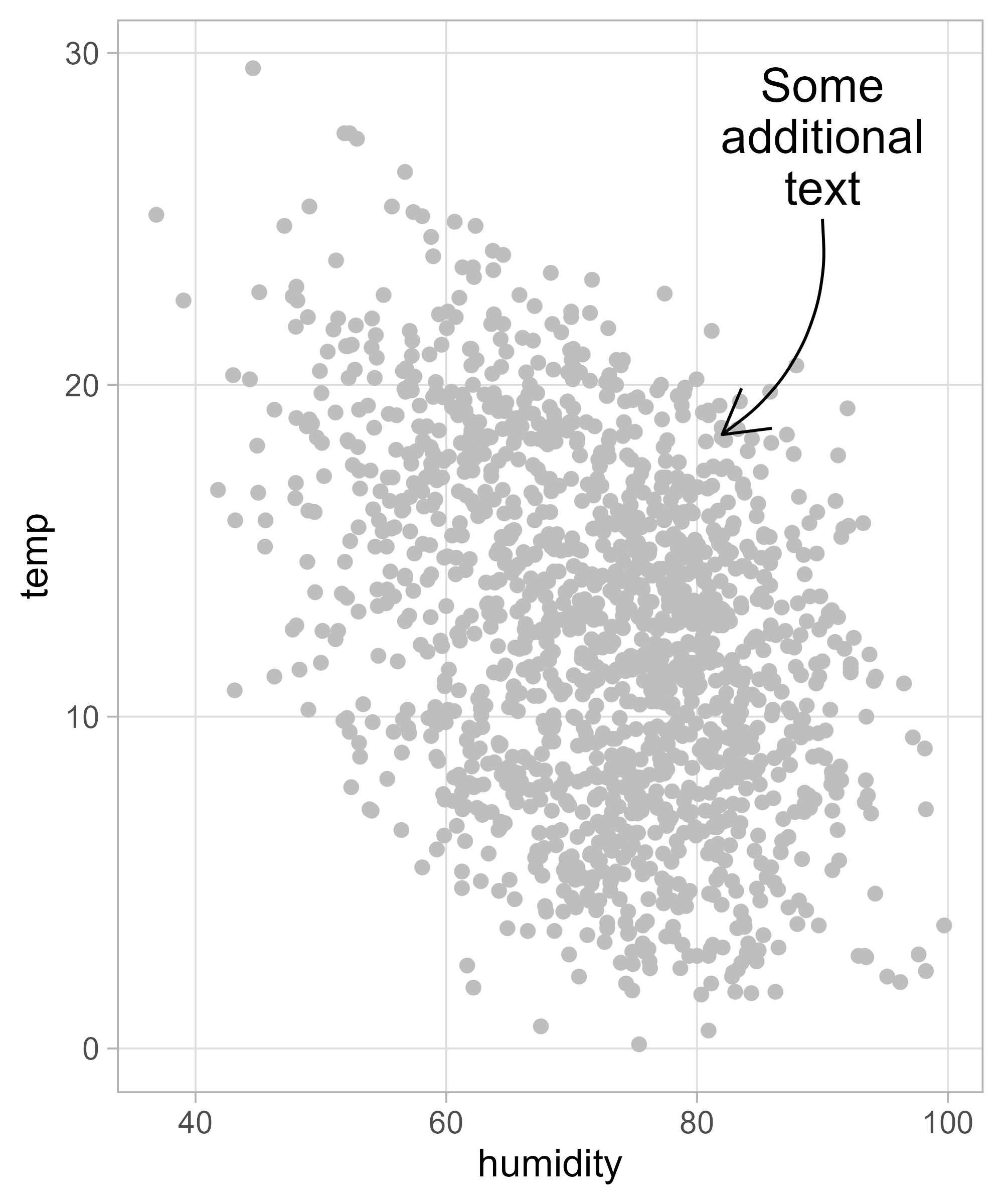

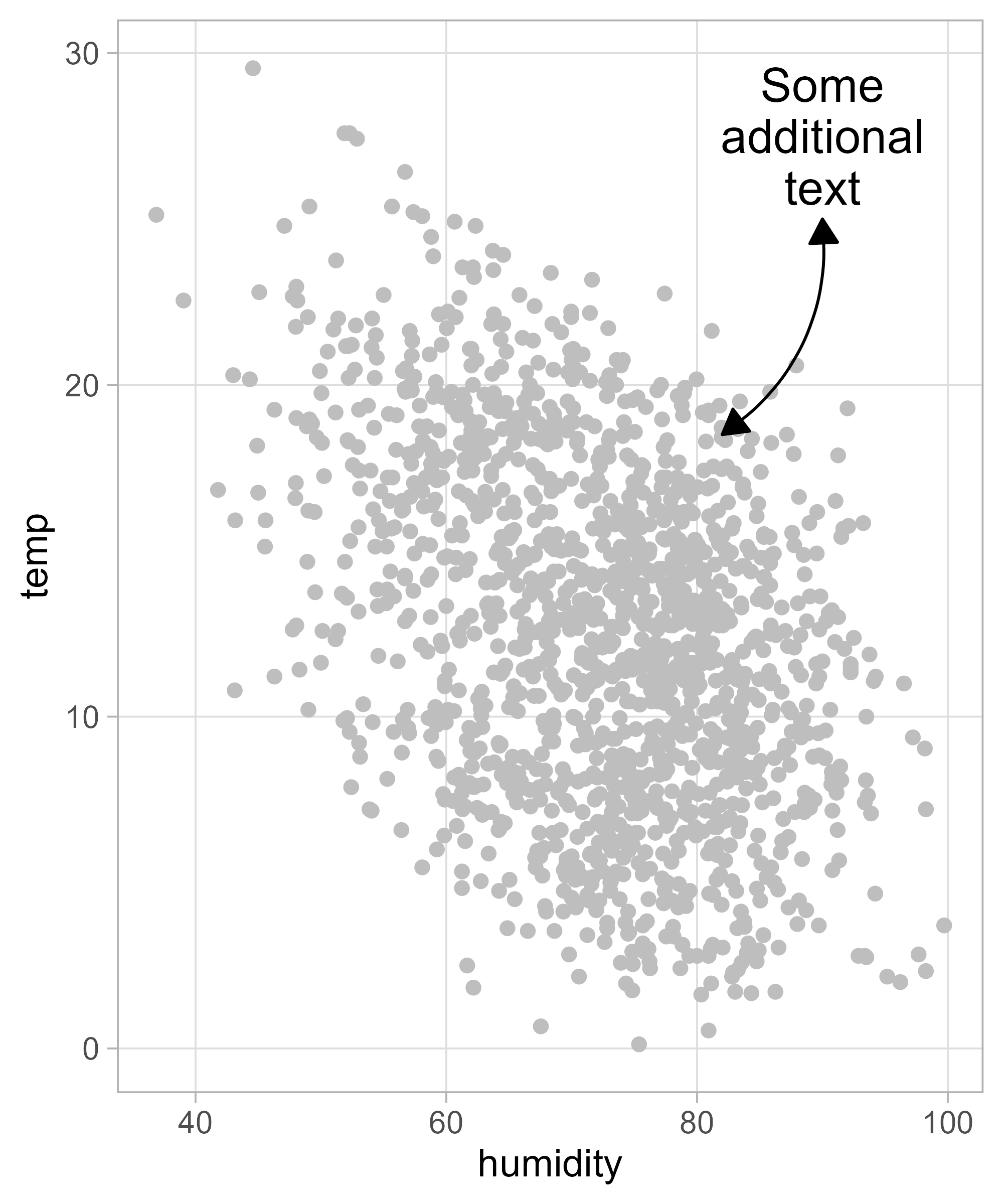

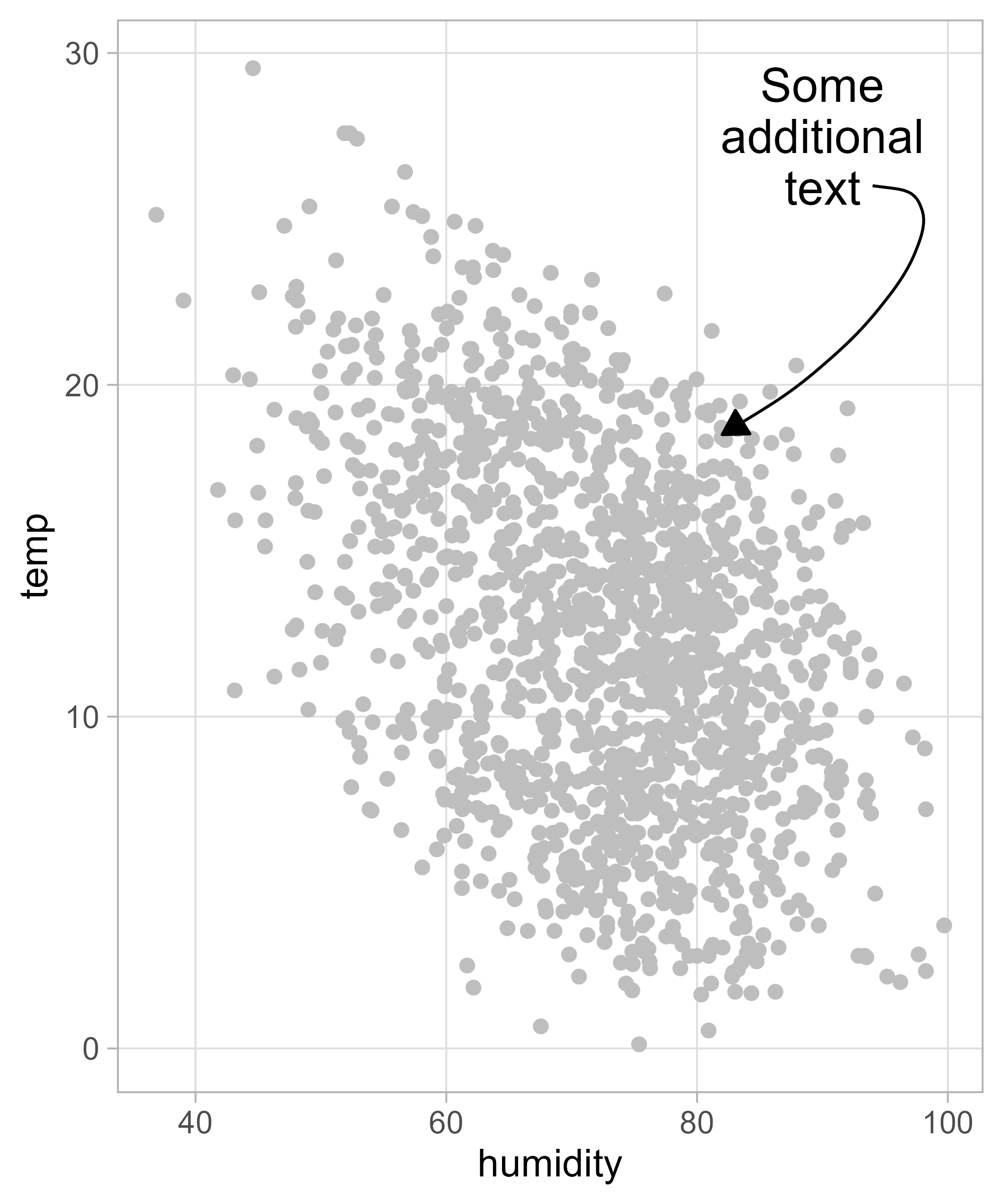

Add Arrows

ggplot(bikes, aes(humidity, temp)) +
  geom_point(size = 2, color = "grey") +
  annotate(
    geom = "text",
    x = 90,
    y = 27.5,
    label = "Some\nadditional\ntext",
    size = 6,
    lineheight = .9
  ) +
  annotate(
    geom = "curve",
    x = 94, xend = 82,
    y = 26, yend = 18.5,
    curvature = -.8,
    angle = 140,
    arrow = arrow(
      length = unit(10, "pt"),
      type = "closed"
    )
  )

Annotations with geom_*()

Highlight Hot Periods

ggplot(
    filter(bikes, temp >= 27),
    aes(x = humidity, y = temp)
  ) +
  geom_point(
    data = bikes,
    color = "grey65", alpha = .3
  ) +
  geom_point(size = 2.5)

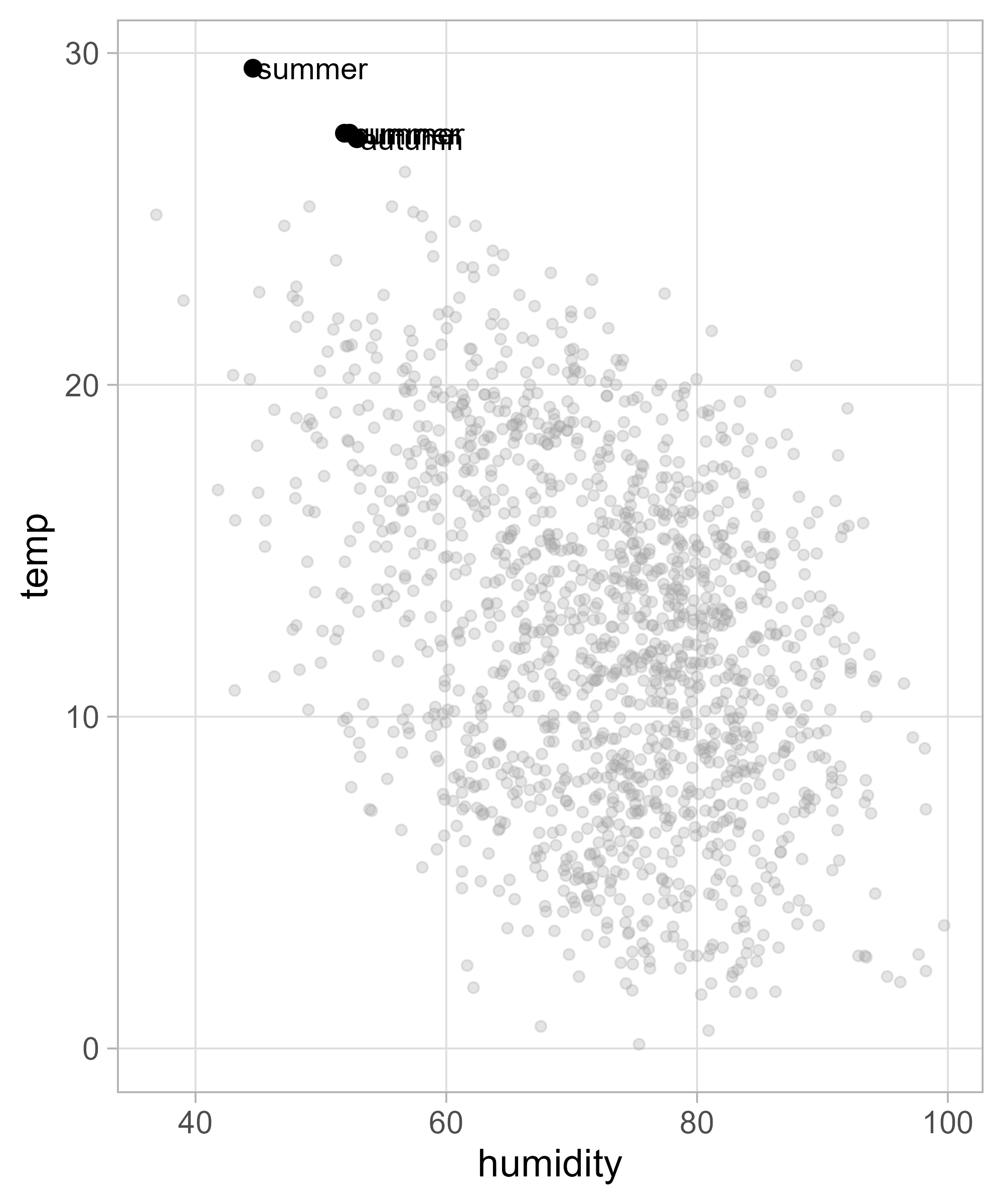

Annotations with `geom_text()`

ggplot(
    filter(bikes, temp >= 27),
    aes(x = humidity, y = temp)
  ) +
  geom_point(
    data = bikes,
    color = "grey65", alpha = .3
  ) +
  geom_point(size = 2.5) +
  geom_text(
    aes(label = season),
    nudge_x = .3,
    hjust = 0
  )

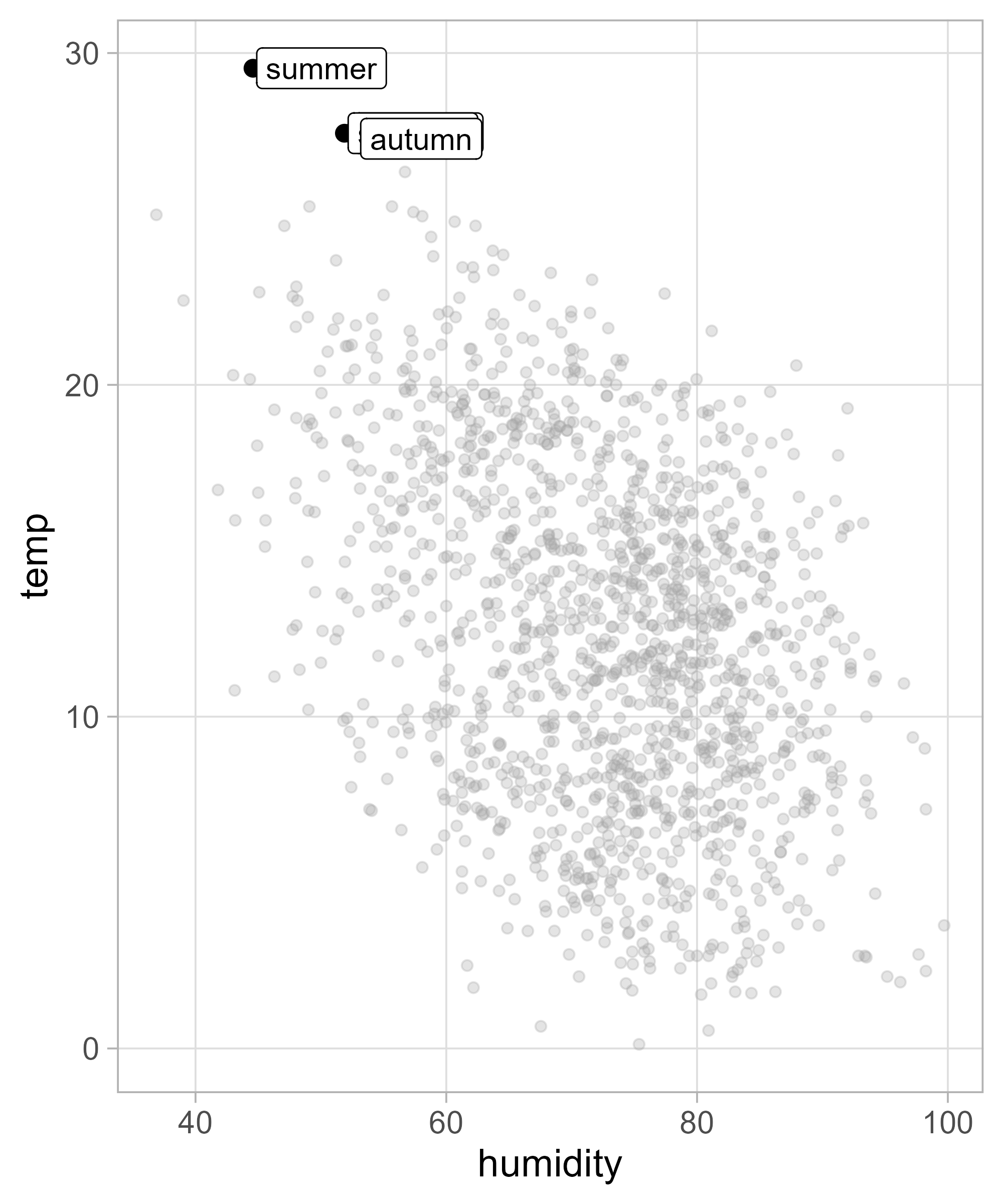

Annotations with `geom_label()`

ggplot(
    filter(bikes, temp >= 27),
    aes(x = humidity, y = temp)
  ) +
  geom_point(
    data = bikes,
    color = "grey65", alpha = .3
  ) +
  geom_point(size = 2.5) +
  geom_label(
    aes(label = season),
    nudge_x = .3,
    hjust = 0
  )

Annotations with {ggrepel}

ggplot(
    filter(bikes, temp >= 27),
    aes(x = humidity, y = temp)
  ) +
  geom_point(
    data = bikes,
    color = "grey65", alpha = .3
  ) +
  geom_point(size = 2.5) +
  ggrepel::geom_text_repel(
    aes(label = season)
  )

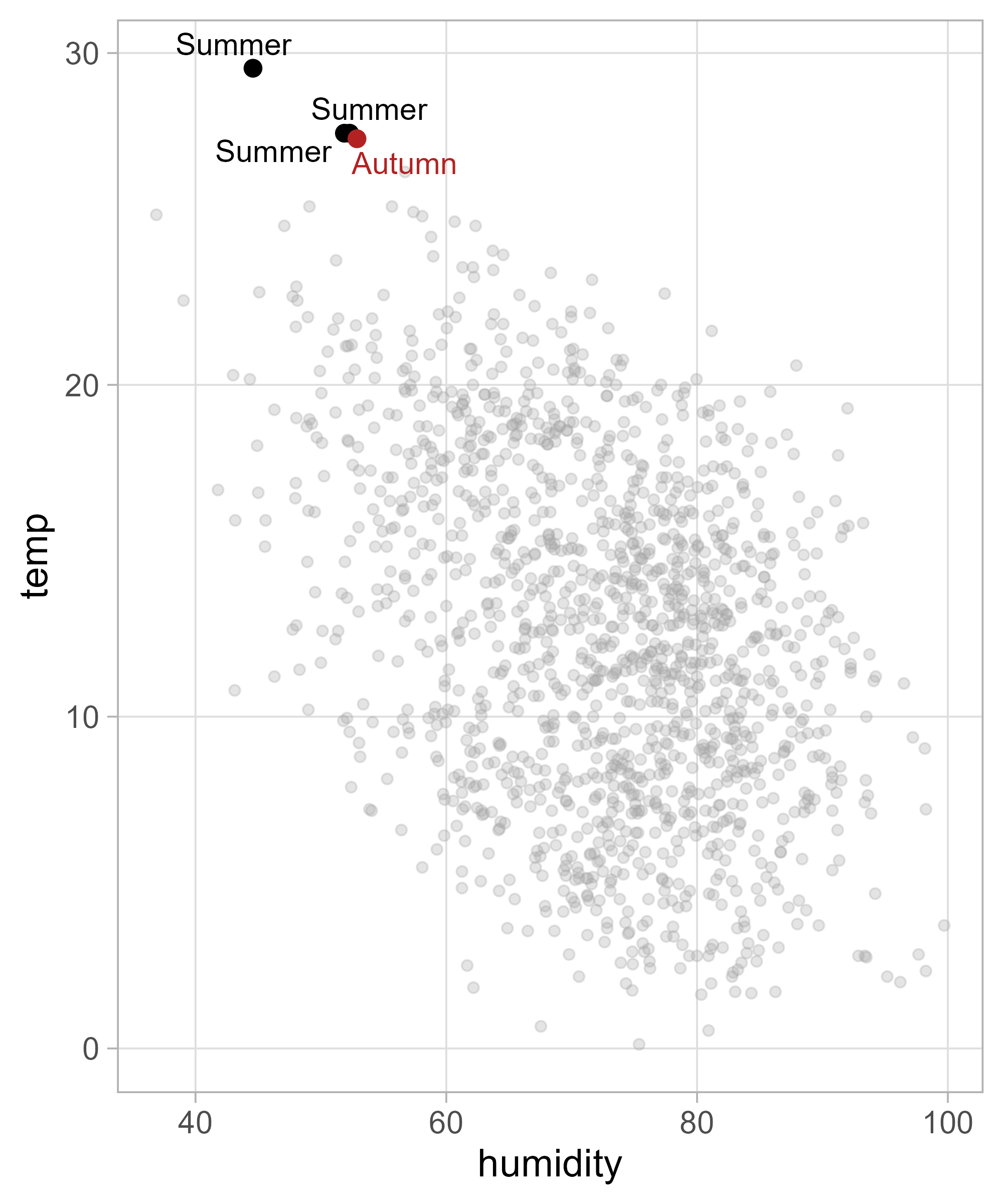

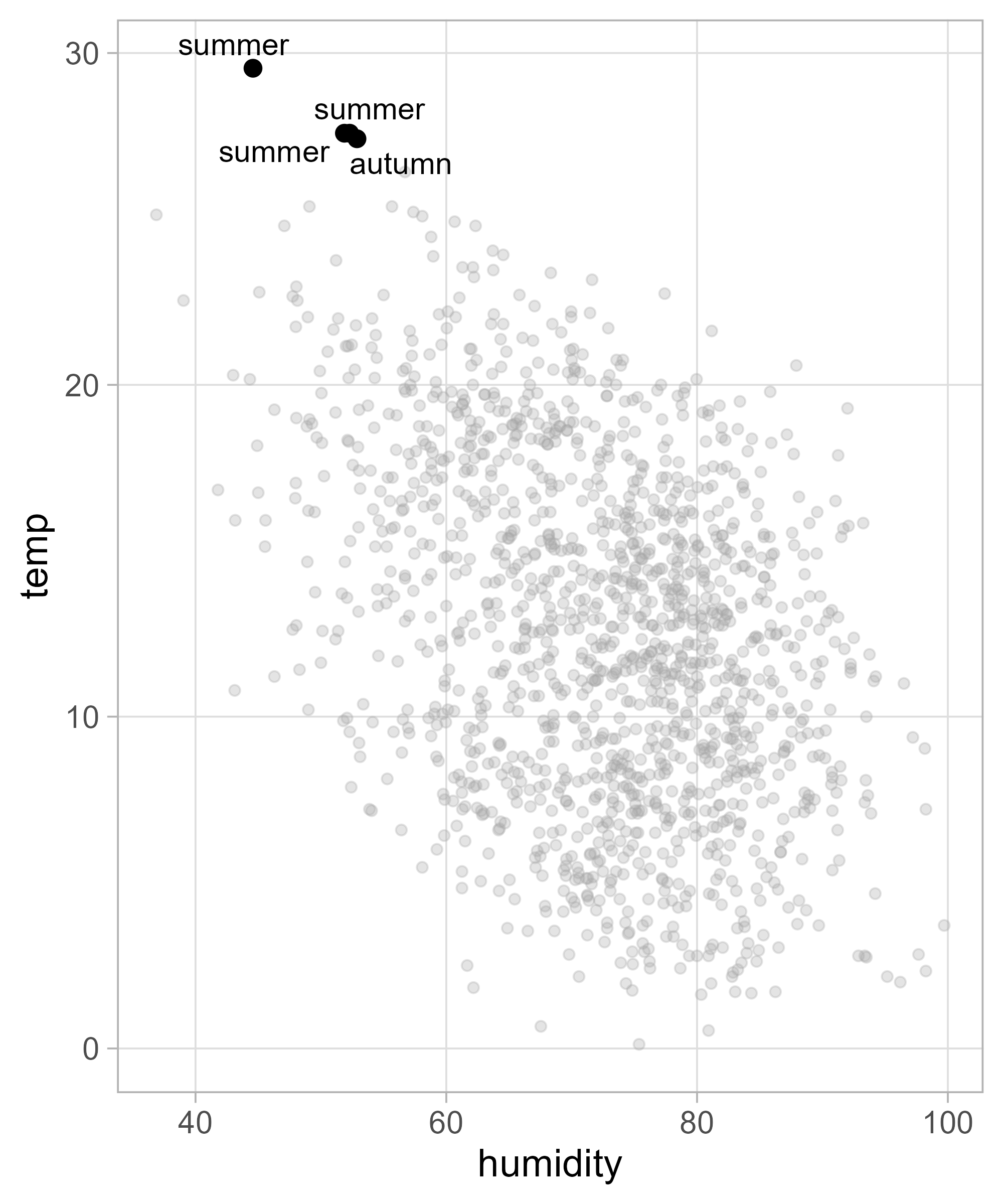

Annotations with {ggrepel}

ggplot(
    filter(bikes, temp >= 27),
    aes(x = humidity, y = temp,
        color = season == "summer")
  ) +
  geom_point(
    data = bikes,
    color = "grey65", alpha = .3
  ) +
  geom_point(size = 2.5) +
  ggrepel::geom_text_repel(
    aes(label = str_to_title(season))
  ) +
  scale_color_manual(
    values = c("firebrick", "black"),
    guide = "none"
  )

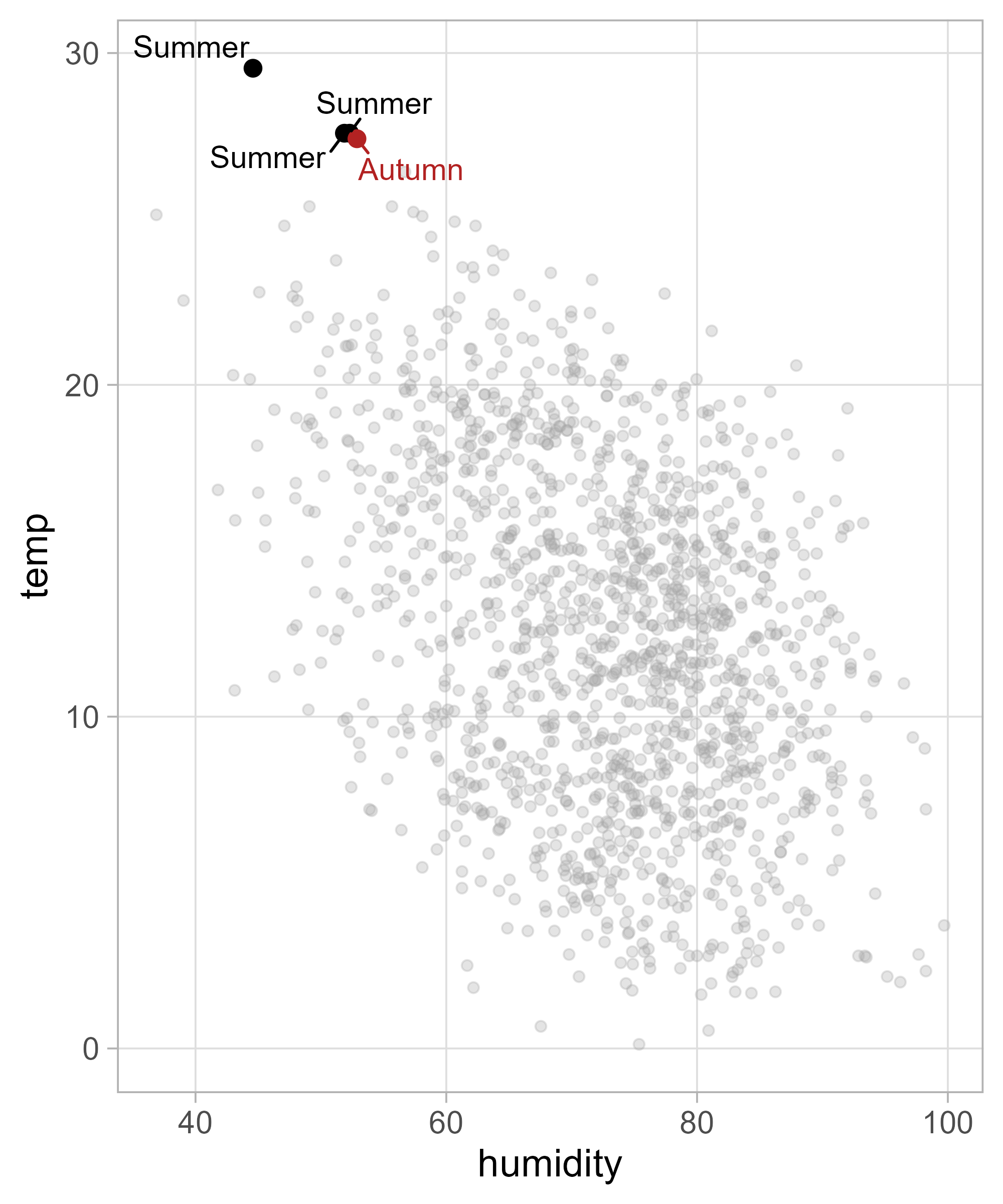

Annotations with {ggrepel}

ggplot(
    filter(bikes, temp >= 27),
    aes(x = humidity, y = temp,
        color = season == "summer")
  ) +
  geom_point(
    data = bikes,
    color = "grey65", alpha = .3
  ) +
  geom_point(size = 2.5) +
  ggrepel::geom_text_repel(
    aes(label = str_to_title(season)),
    ## space between points + labels
    box.padding = .4,
    ## always draw segments
    min.segment.length = 0
  ) +
  scale_color_manual(
    values = c("firebrick", "black"),
    guide = "none"
  )

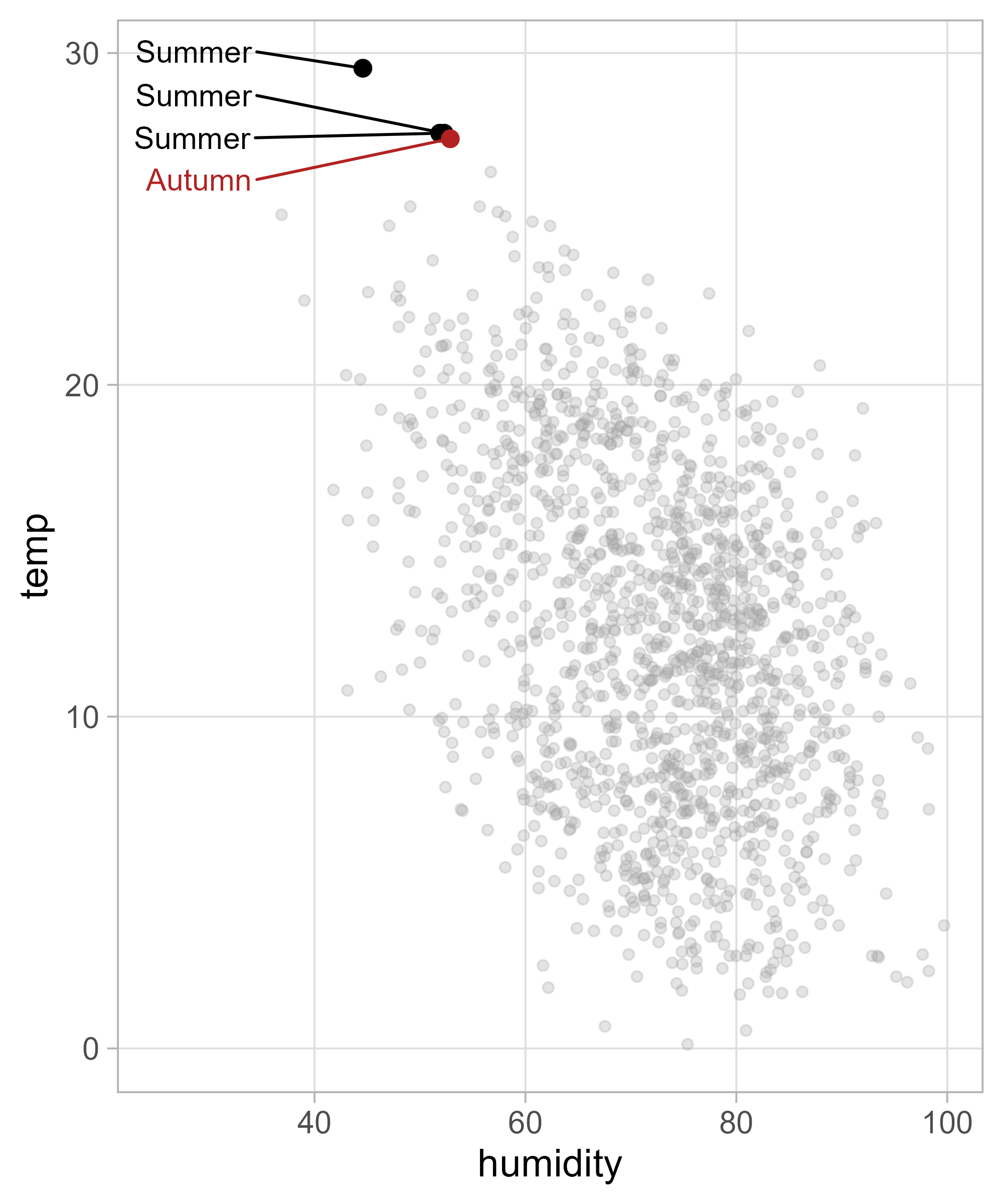

Annotations with {ggrepel}

ggplot(
    filter(bikes, temp >= 27),
    aes(x = humidity, y = temp,
        color = season == "summer")
  ) +
  geom_point(
    data = bikes,
    color = "grey65", alpha = .3
  ) +
  geom_point(size = 2.5) +
  ggrepel::geom_text_repel(
    aes(label = str_to_title(season)),
    ## force to the right
    xlim = c(NA, 35), hjust = 1
  ) +
  scale_color_manual(
    values = c("firebrick", "black"),
    guide = "none"
  ) +
  xlim(25, NA)

Annotations with {ggrepel}

ggplot(
    filter(bikes, temp >= 27),
    aes(x = humidity, y = temp,
        color = season == "summer")
  ) +
  geom_point(
    data = bikes,
    color = "grey65", alpha = .3
  ) +
  geom_point(size = 2.5) +
  ggrepel::geom_text_repel(
    aes(label = str_to_title(season)),
    ## force to the right
    xlim = c(NA, 35),
    ## style segment
    segment.curvature = .01,
    arrow = arrow(length = unit(.02, "npc"), type = "closed")
  ) +
  scale_color_manual(
    values = c("firebrick", "black"),
    guide = "none"
  ) +
  xlim(25, NA)

Annotations with {ggrepel}

ggplot(
    filter(bikes, temp >= 27),
    aes(x = humidity, y = temp,
        color = season == "summer")
  ) +
  geom_point(
    data = bikes,
    color = "grey65", alpha = .3
  ) +
  geom_point(size = 2.5) +
  ggrepel::geom_text_repel(
    aes(label = str_to_title(season)),
    ## force to the right
    xlim = c(NA, 35),
    ## style segment
    segment.curvature = .001,
    segment.inflect = TRUE
  ) +
  scale_color_manual(
    values = c("firebrick", "black"),
    guide = "none"
  ) +
  xlim(25, NA)

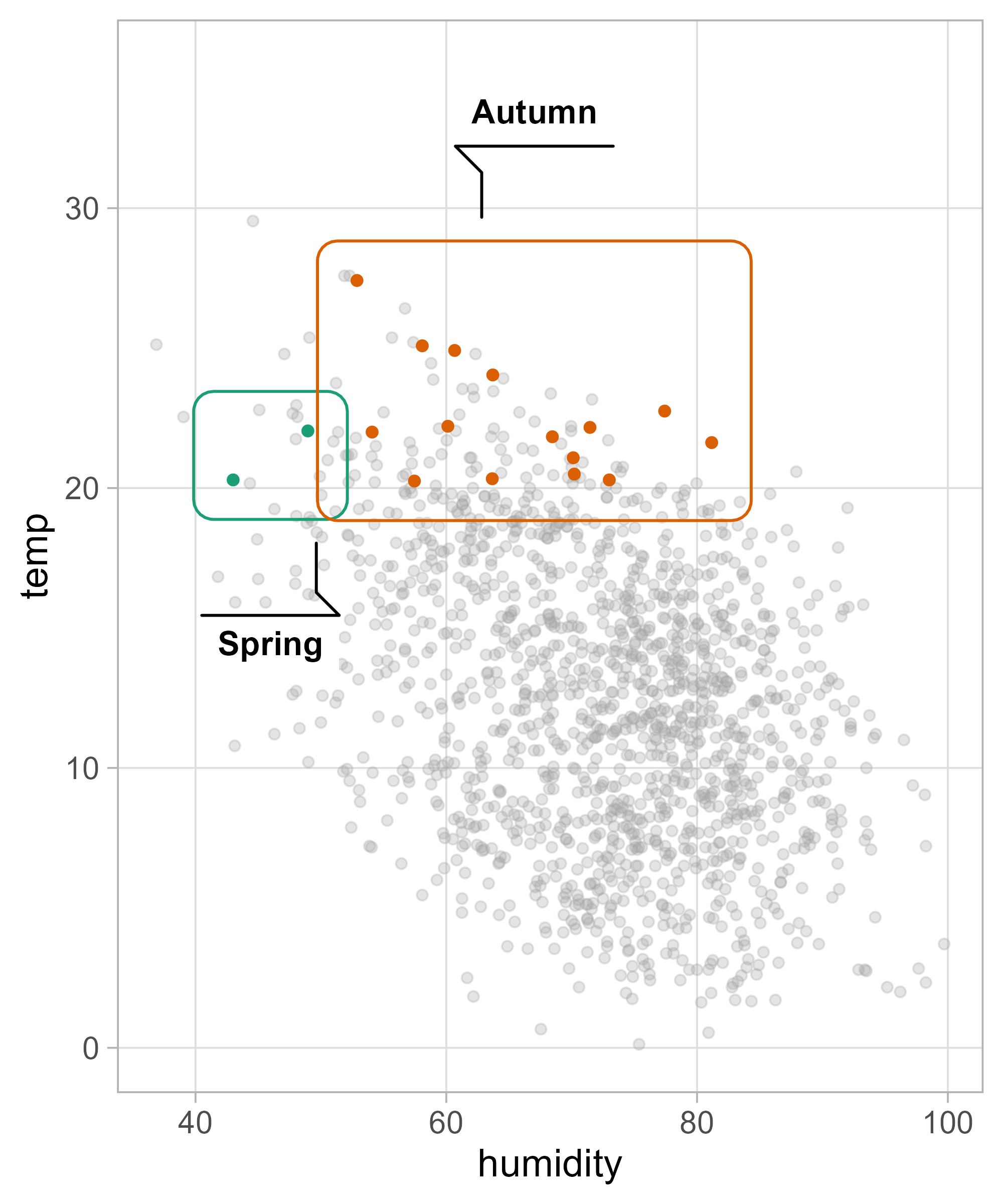

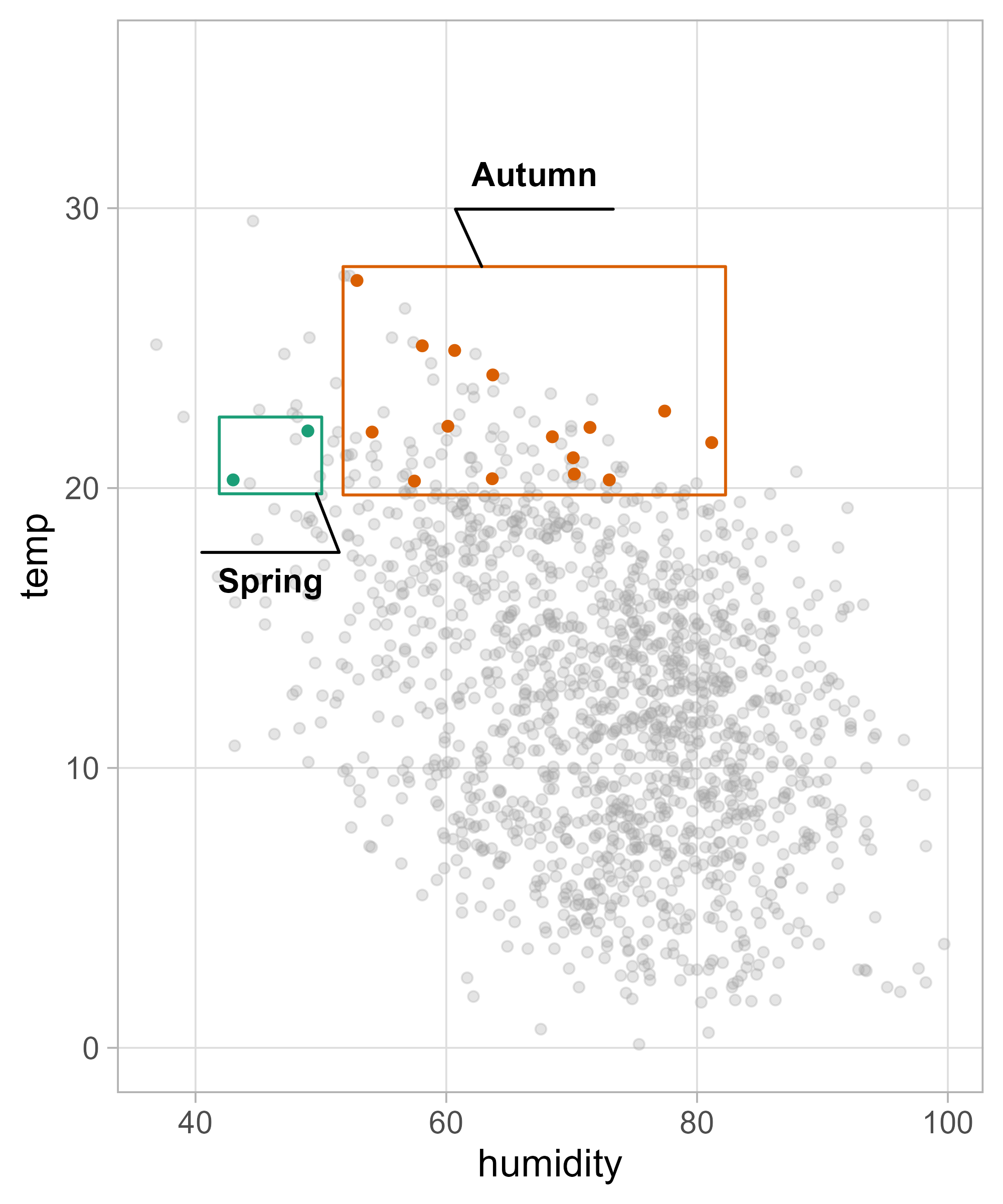

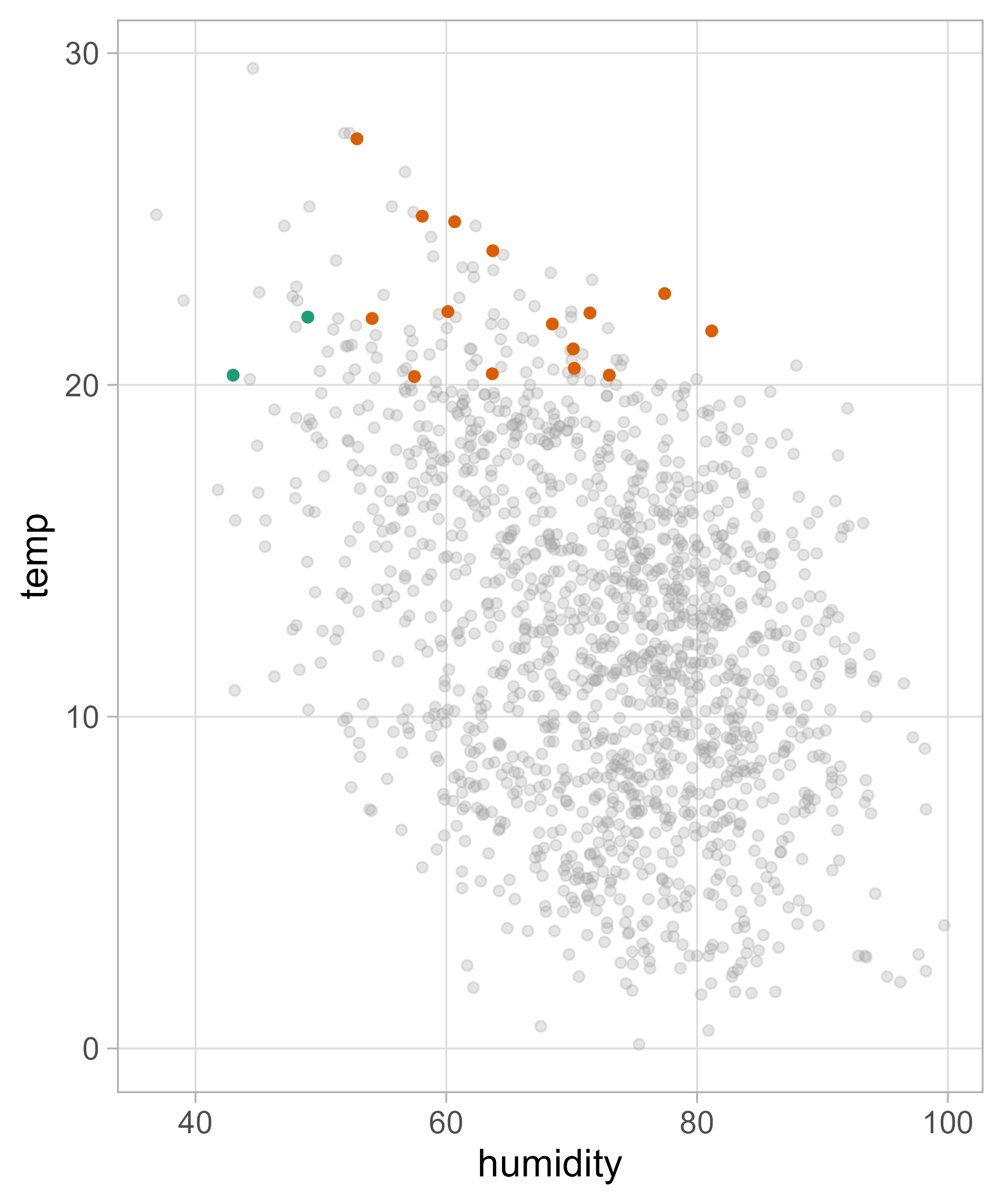

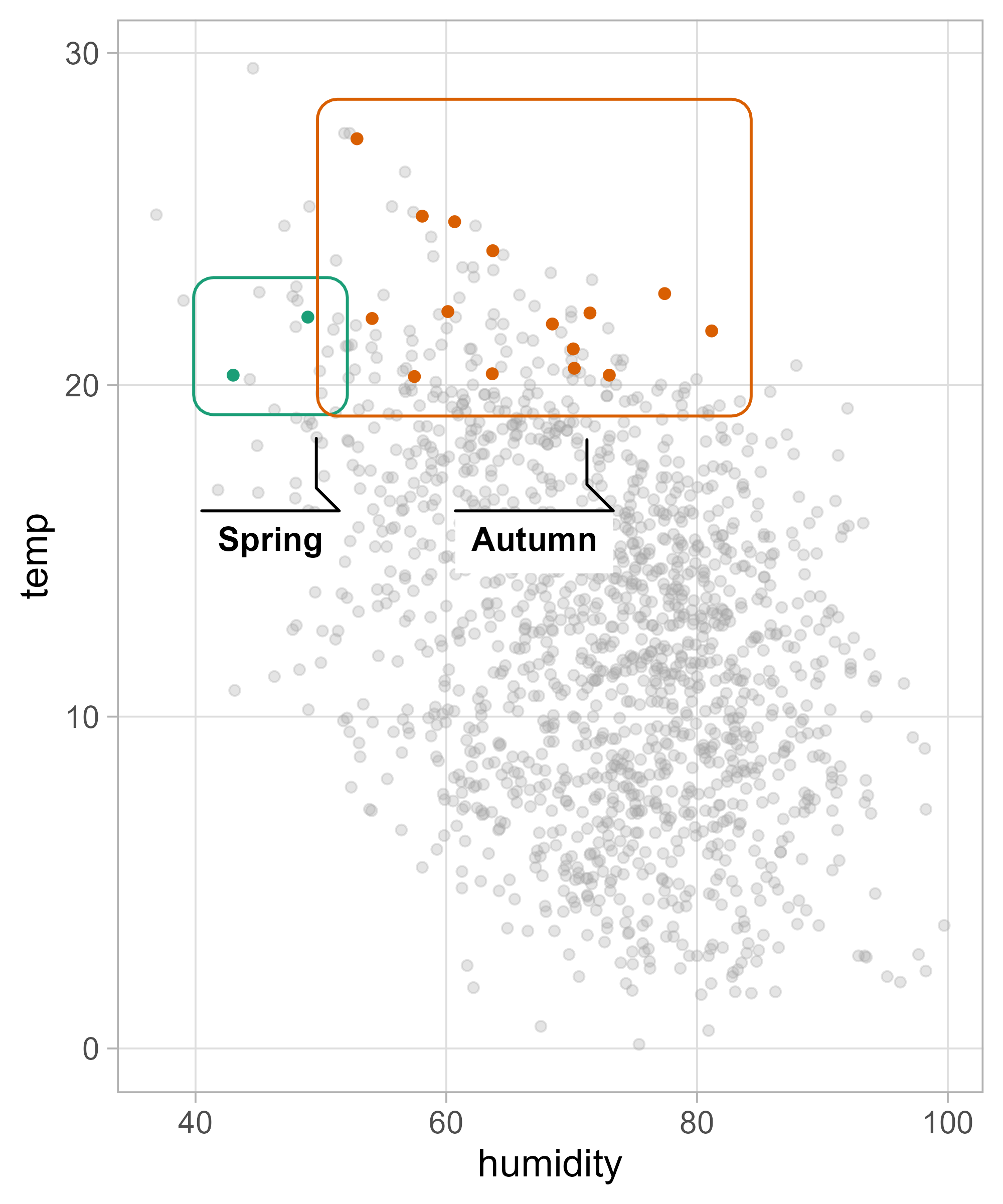

Annotations with {ggforce}

ggplot(
    filter(bikes, temp > 20 & season != "summer"),
    aes(x = humidity, y = temp,
        color = season)
  ) +
  geom_point(
    data = bikes,
    color = "grey65", alpha = .3
  ) +
  geom_point() +
  scale_color_brewer(
    palette = "Dark2",
    guide = "none"
  )

Annotations with {ggforce}

ggplot(
    filter(bikes, temp > 20 & season != "summer"),
    aes(x = humidity, y = temp,
        color = season)
  ) +
  geom_point(
    data = bikes,
    color = "grey65", alpha = .3
  ) +
  geom_point() +
  ggforce::geom_mark_rect(
    aes(label = str_to_title(season))
  ) +
  scale_color_brewer(
    palette = "Dark2",
    guide = "none"
  )

Annotations with {ggforce}

ggplot(
    filter(bikes, temp > 20 & season != "summer"),
    aes(x = humidity, y = temp,
        color = season)
  ) +
  geom_point(
    data = bikes,
    color = "grey65", alpha = .3
  ) +
  geom_point() +
  ggforce::geom_mark_rect(
    aes(label = str_to_title(season))
  ) +
  scale_color_brewer(
    palette = "Dark2",
    guide = "none"
  ) +
  ylim(NA, 35)

Annotations with {ggforce}

ggplot(
    filter(bikes, temp > 20 & season != "summer"),
    aes(x = humidity, y = temp,
        color = season)
  ) +
  geom_point(
    data = bikes,
    color = "grey65", alpha = .3
  ) +
  geom_point() +
  ggforce::geom_mark_rect(
    aes(label = str_to_title(season)),
    expand = unit(5, "pt"),
    radius = unit(0, "pt"),
    con.cap = unit(0, "pt"),
    label.buffer = unit(15, "pt"),
    con.type = "straight",
    label.fill = "transparent"
  ) +
  scale_color_brewer(
    palette = "Dark2",
    guide = "none"
  ) +
  ylim(NA, 35)

Annotations with {ggforce}

ggplot(
    bikes,
    aes(x = humidity, y = temp,
        color = season == "summer")
  ) +
  geom_point(alpha = .4) +
  ggforce::geom_mark_hull(
    aes(label = str_to_title(season),
        filter = season == "summer",
        description = "June to August"),
    expand = unit(10, "pt")
  ) +
  scale_color_manual(
    values = c("grey65", "firebrick"),
    guide = "none"
  )

Exercises

Exercise 1

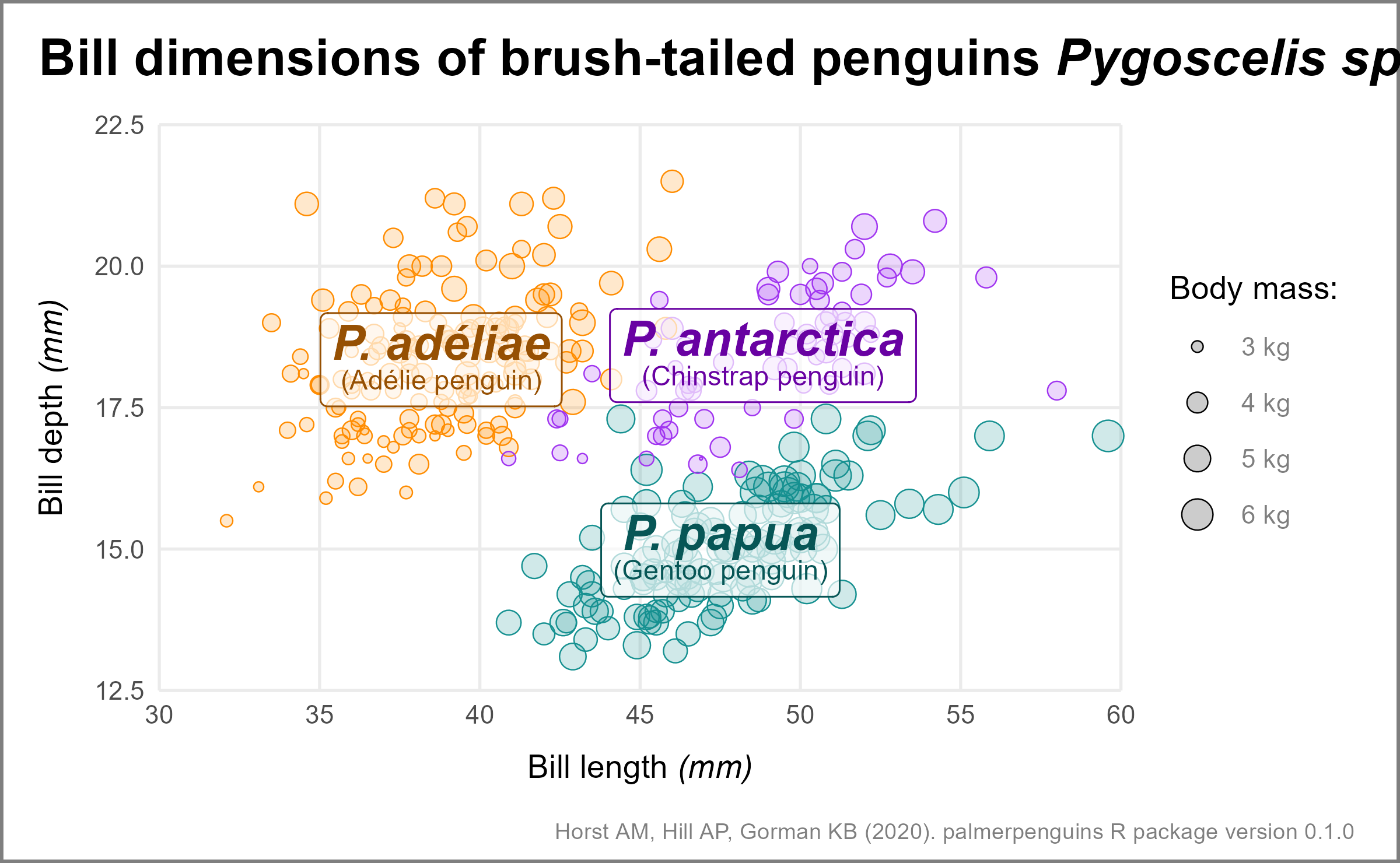

• Create the following visualization, as close as possible, with the penguins dataset which is provided by the {palmerpenguins} package.
  • For the species labels, you likely have to create a summary data set.
  • Use the {ggtext} geometries and theme elements to format the labels.
  • Also, make use of the other components such as scales, complete themes, and theme customization.
